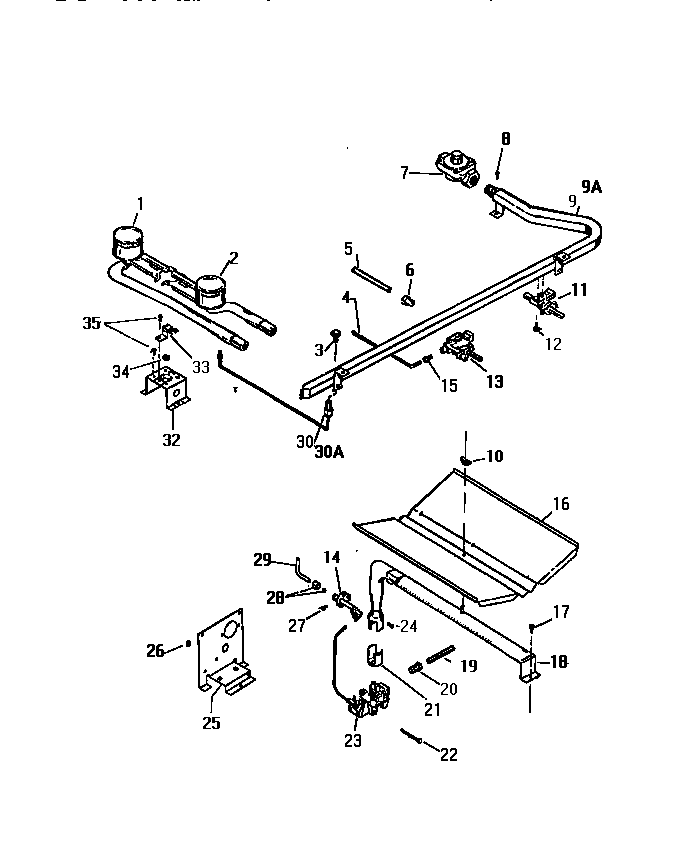

GF201HXD2 04 – BURNER ASSEMBLY

Products

Position	Product
1	WCI Q301865
2	WCI Q301861
7	5308007974 Frigidaire Pressure Regulator
9	WCI Q310060
10	WING NUT
11	WCI Q310873
12	WCI AP051027
13	WCI Q301859
14	WCI Q301876
15	NUT
16	WCI A9010000
18	WCI Q301880
19	TUBING
20	BUT - 3/8 LOXIT
21	WCI Q301879
22	BOLT
23	WCI Q301872
24	SCREW
25	SUPPORT
26	WCI Q402302
27	SCREW
28	WCI Q301878
29	TUBING
30	WCI Q310068
32	WCI Q301866
33	WCI Q301966
34	PAL NUT
35	WCI AP051056
