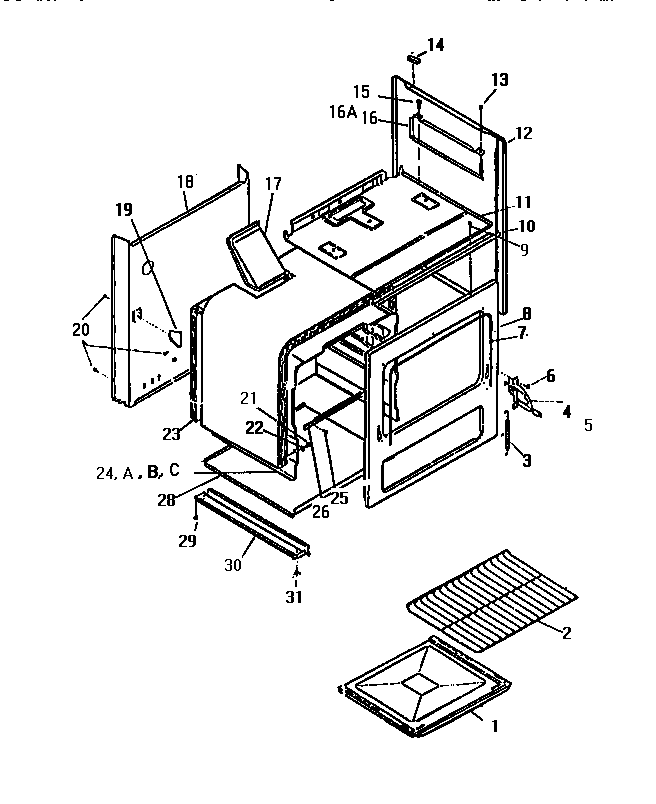

GF201HXV0 05 – OVEN AND BODY

Products

Position	Product
1	WCI Q301970
2	WCI AP301042
3	WCI AP339053
4	WCI A96068000
5	318348801 Frigidaire Oven Left Side Door Hinge
6	5304500008 Frigidaire Oven Screw
7	WCI AP326050
8	WCI Q301834
10	SUPPORT-CONTROL PNL
11	WCI Q310057
12	BODY PANEL, FR AV
13	WCI AP172002
14	WCI Q301831
16A	HEAT SHIELD, LH (NON-ILLUSTRATED)
16	HEAT SHIELD-RH
17	WCI A92049000
18	WCI A5085000
19	WCI A74060000
21	WCI AP051045
22	WCI AP391021
23	WCI Q134234
24C	OVEN WRAPPER PANELS, BACK
24B	OVEN WRAPPER PANELS, TOP
24	WCI Q301971
24A	WCI Q301972
26	SUPPORT, BTM
28	PANEL, BOTTOM
29	WCI AP051056
30	BASE RAIL
31	WCI AP059009
