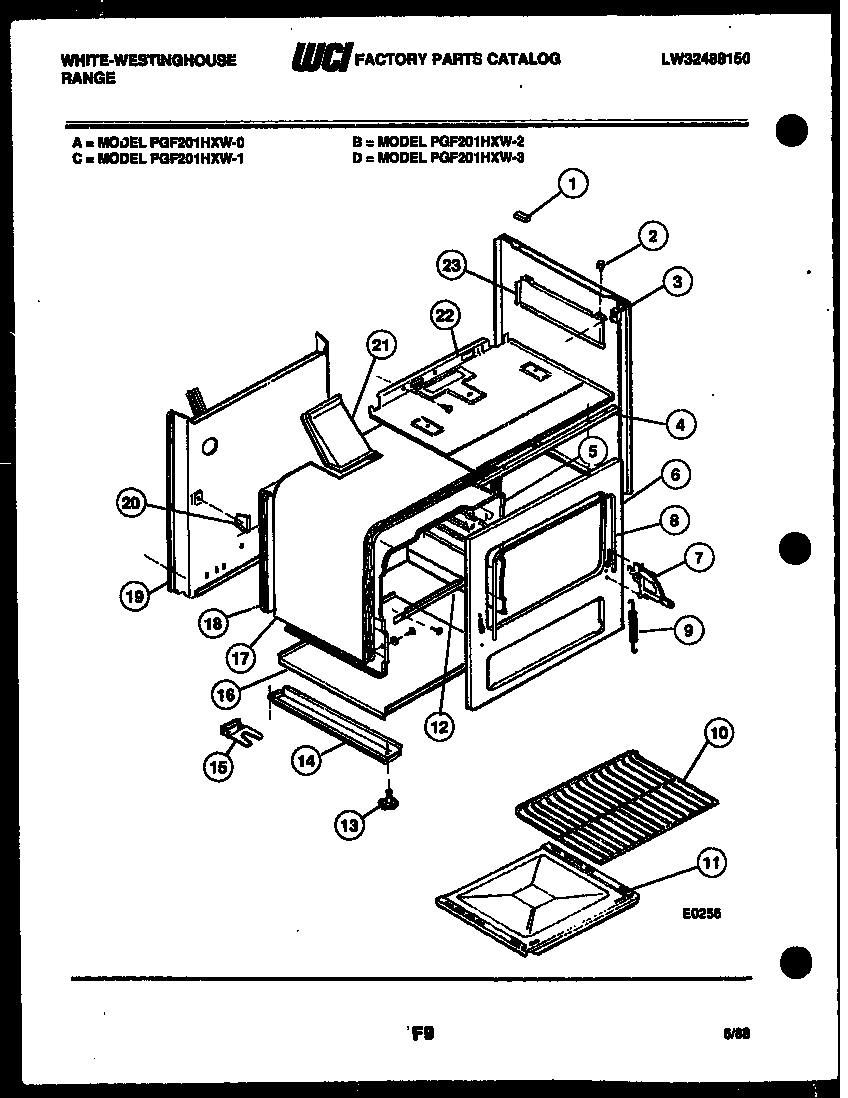

GF201HXW4 06 – BODY PARTS

Products

Position	Product
*11697	CLIP,BODYSIDE
1	GROMMET MAIN TOP
2	GROMMET
3	PANEL-BODYSIDE (WHITE) (2)
4	SUPPORT-CONTROL PNL
5	OVEN LINER-SIDE LH
5	OVEN LINER-SIDE RH
5	OVEN LINER-TOP
5	OVEN LINER-BACK
6	FRAME-FRONT
7	318348801 Frigidaire Oven Left Side Door Hinge
7A	WCI 3204670
8	SEAL – OVEN DOOR
9	SPRING DOOR (2)
10	WCI 3016158
11	OVEN-BOTTOM
12	SUPPORT-OVEN BOTTOM
13	WCI 3051080
14	BASE RAIL
15	ANTI-TIP KIT
16	MAIN BOTTOM
17	INSULATION WRAPPER
18	WCI 3131044
19	WCI 3131045
20	SUPPORT-REAR OVN (2)
21	WCI 3017173
22	BURNER BOX
23A	WCI 3131054
23	WCI 3131053
