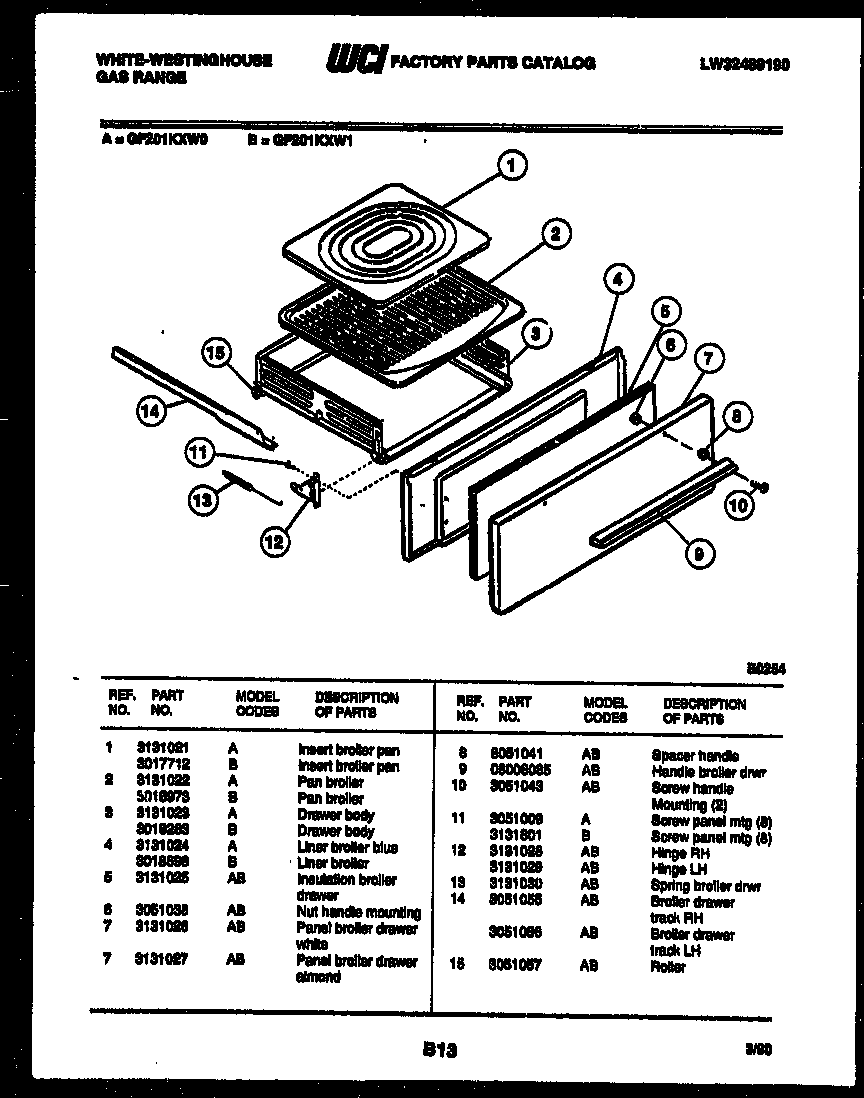

GF201KXW1 04 – BROILER DRAWER PARTS

GF201KXW1 04 – BROILER DRAWER PARTS

Written by

in

GF201KXW1 04 – BROILER DRAWER PARTS

Products

PositionProduct
1BROILER GRID
2WCI 3016973
35304504568 Frigidaire Drawer Assembly
4LINER
5WCI 3131025
65303013272 Frigidaire Oven Nut
7WCI 3131026
8SPACER HANDLE (2)
9WCI 08008085
105303292012 Frigidaire Oven Screw
11WCI 3131801
12HINGE – RH
12AHINGE – LH
13SPRING (2)
14ATRACK LEFT HAND
14TRACK RIGHT HAND
15WCI 3051057
