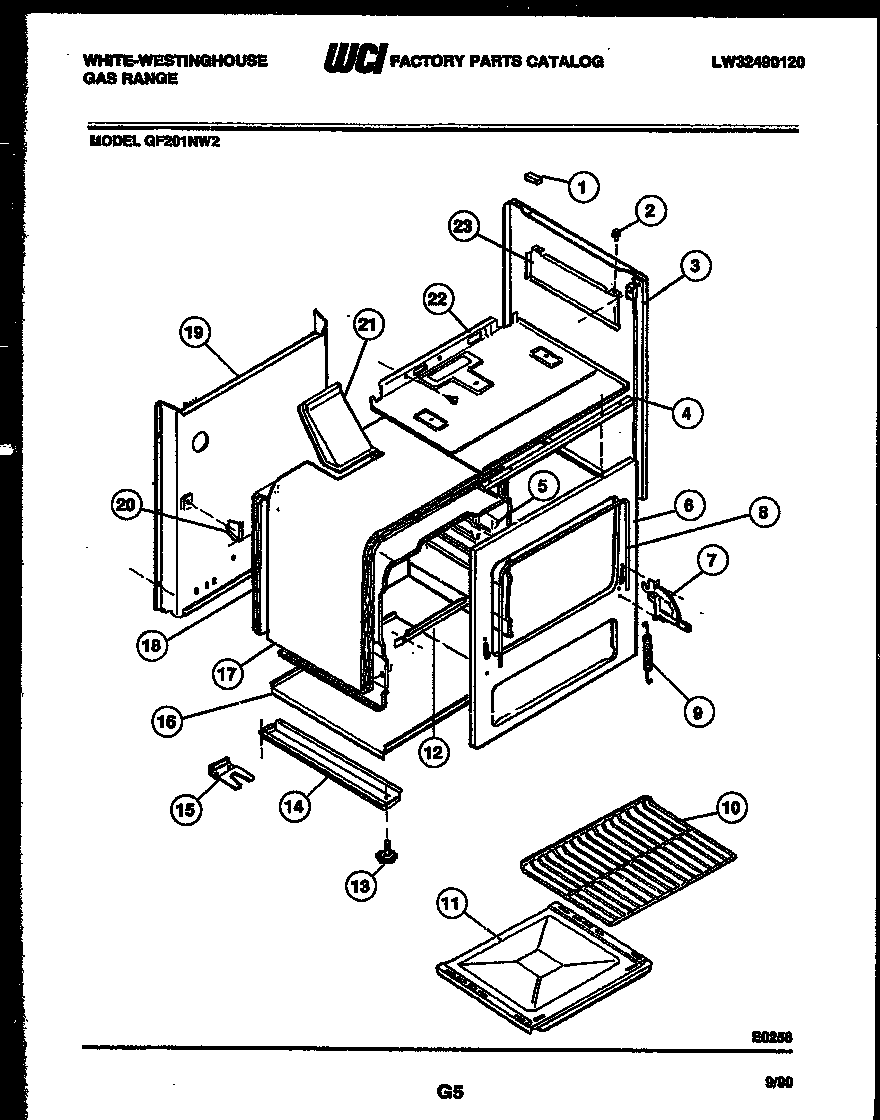

| *34069 | CLIP,BODYSIDE |
| 1 | GROMMET-MAINTOP |
| 2 | GROMMET |
| 3 | PANEL BODYSIDE-ALMD |
| 4 | SUPPORT-CONTROL PNL |
| 5C | OVEN LINER-BACK |
| 5B | OVEN LINER-TOP |
| 5 | OVEN LINER-SIDE RH |
| 5A | OVEN LINER-SIDE LH |
| 6 | FRAME-FRONT |
| 7A | HINGE ASSY-RH |
| 7 | 318348801 Frigidaire Oven Left Side Door Hinge |
| 8 | SEAL OVEN DOOR |
| 9 | SPRING-OVEN DOOR |
| 10 | WCI 3016158 |
| 11 | OVEN-BOTTOM |
| 12 | SUPPORT-OVEN BOTTOM |
| 14 | Rail,base ,RH |
| 14A | RAIL-BASE, LH |
| 15 | BRACKET-INSTALLATION (2) |
| 16 | MAIN BOTTOM |
| 17 | INSULATION WRAPPER |
| 18 | WCI 3131044 |
| 19 | WCI 3131045 |
| 20 | SUPPORT-REAR OVN (2) |
| 21 | WCI 3017173 |
| 22 | BURNER BOX |
| 23 | SHIELD-BURNER BOX RH |
| 23 | SHIELD-BURNER BOX LH |
