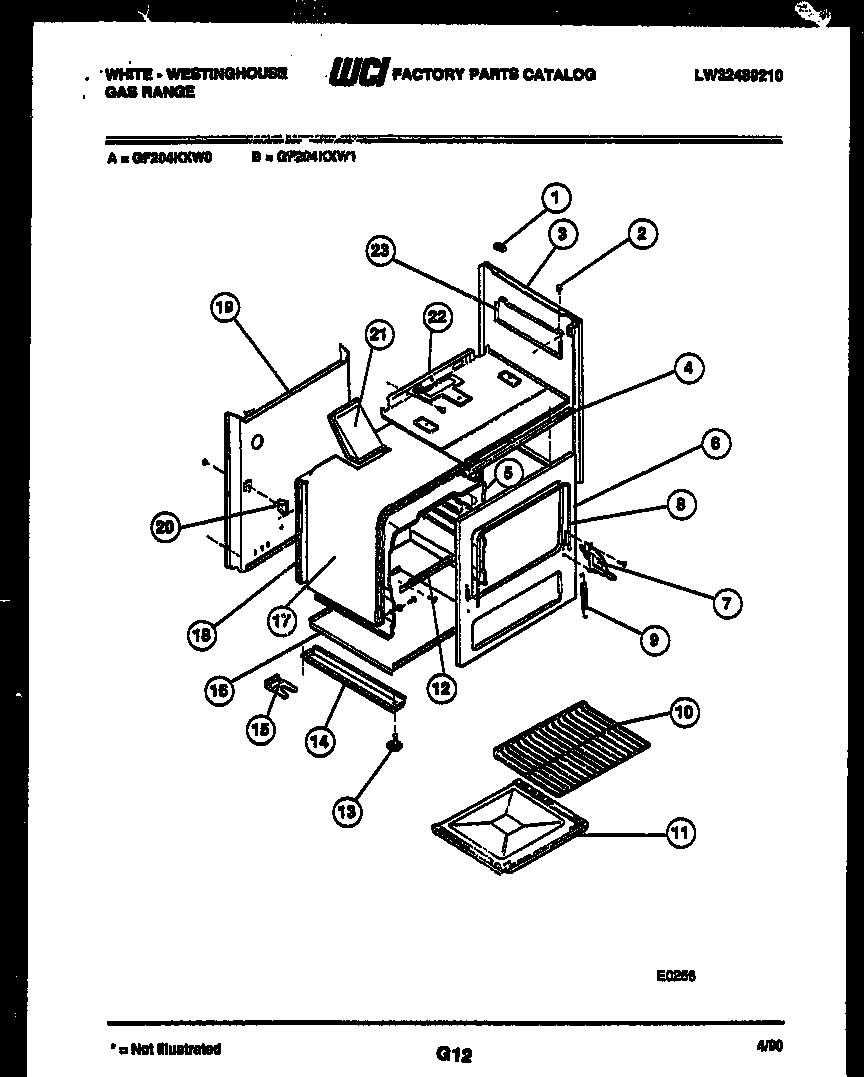

GF204KXD1 06 – BODY PARTS

Products

Position	Product
*77598	CLIP BACKSPLASH CORNER
1	GROMMET MAIN TOP
2	GROMMET
3	WCI 08014019
4	SUPPORT-CONTROL PANEL
5A	OVEN LINER-SIDE LH
5	OVEN LINER-SIDE RH
5B	OVEN LINER TOP
5C	OVEN LINER BACK
6	FRAME-FRONT
7A	WCI 3204670
7	318348801 Frigidaire Oven Left Side Door Hinge
8	SEAL OVEN DOOR
9	SPRING DOOR (2)
10	WCI 3016128
11	OVEN BOTTOM
12	SUPPORT-OVEN BOTTOM
13	WCI 3051080
14	BASE RAIL
15	BRACKET-INSTALLATION (2)
16	MAIN BOTTOM
17	WCI 3202740
18	INSUL BACK & TOP
19	COVER – SPARK MODULE
20	SUPPORT-REAR OVN (2)
21	WCI 3017173
22	BURNER BOX
23	WCI 3131053
23A	WCI 3131054
