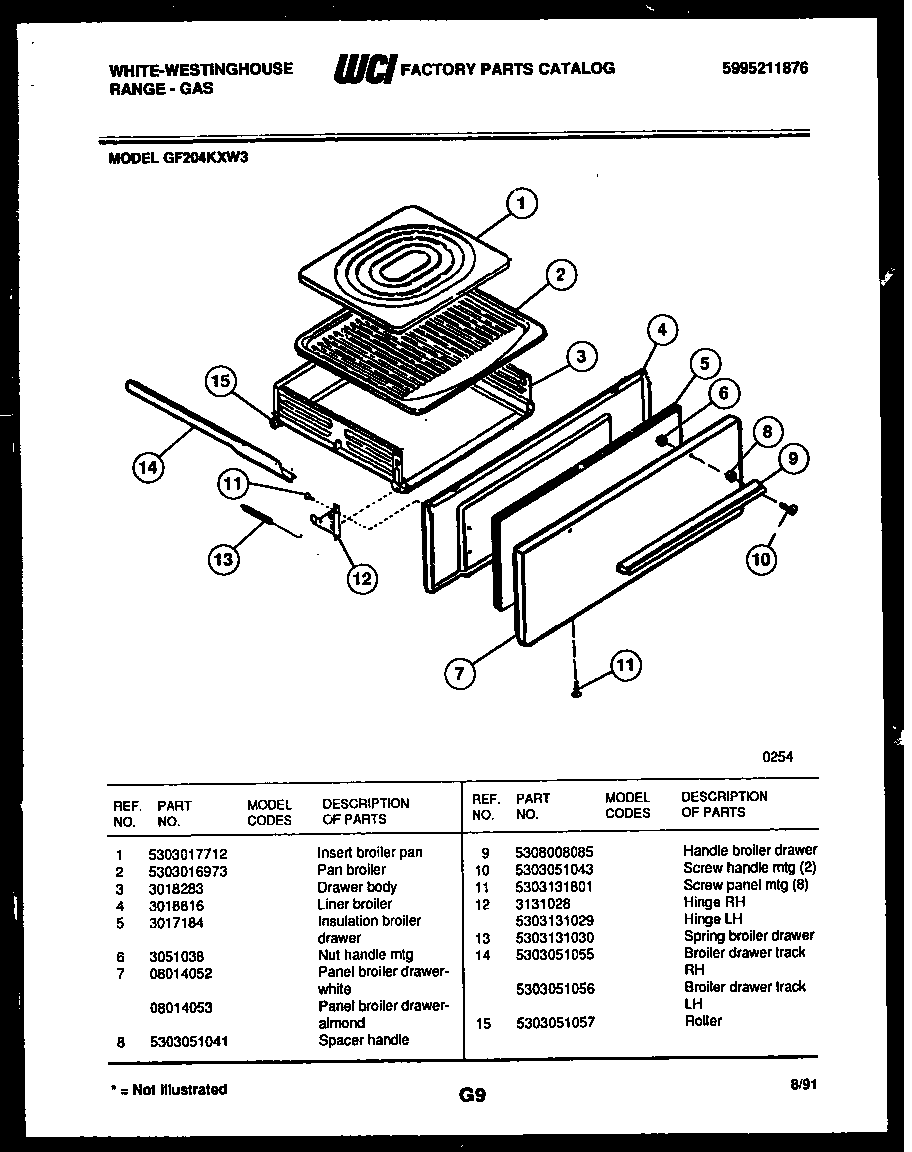

GF204KXW3 03 – BROILER DRAWER PARTS

GF204KXW3 03 – BROILER DRAWER PARTS

Written by

in

GF204KXW3 03 – BROILER DRAWER PARTS

Products

PositionProduct
1WCI 5303017712
2WCI 5303016973
35304504568 Frigidaire Drawer Assembly
4LINER – BROILER
5WCI 3017184
65303013272 Frigidaire Oven Nut
7WCI 08014052
8SPACER HANDLE
9WCI 5308008085
105303292012 Frigidaire Oven Screw
11SCREW, 10 X 3/8
12AHINGE – LH
12HINGE – RH
13SPRING
14TRACK ASSY-RH
14ATRACK ASSY-LH
15ROLLER
