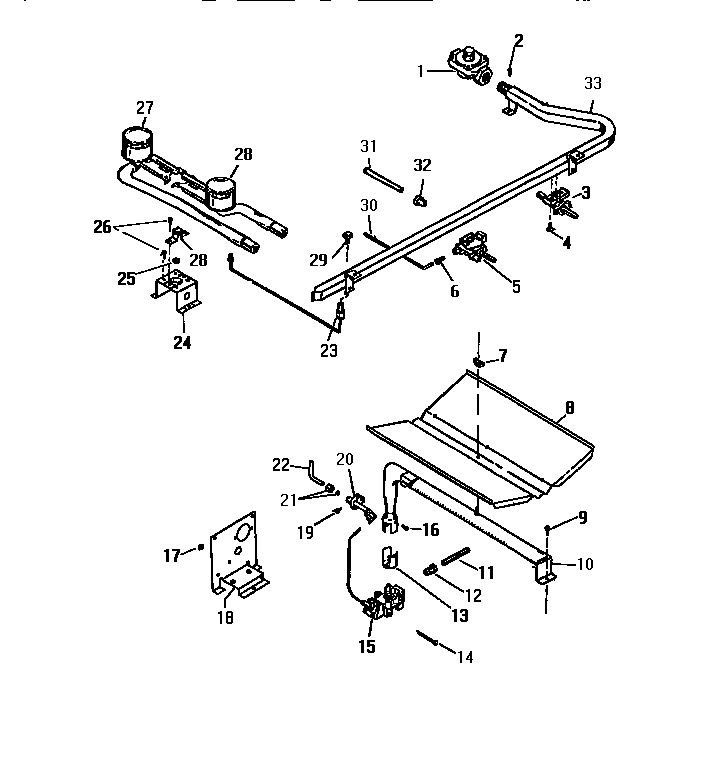

GF300HXW1 04 – BURNER ASSEMBLY

Products

Position	Product
1	5308007974 Frigidaire Pressure Regulator
3	WCI Q301873
4	WCI AP051027
5	WCI Q301859
6	NUT
7	WING NUT
8	WCI A9010000
10	WCI Q301880
13	WCI Q301879
14	BOLT
15	WCI Q301872
16	SCREW
17	WCI Q402302
18	SUPPORT
19	SCREW
20	WCI Q301876
21	WCI Q301878
23	WCI Q310058
24	WCI Q301866
25	PAL NUT
26	WCI AP051056
27	WCI Q301865
28	WCI Q301861
30	TUBING
31	TUBING
32	BUT – 3/8 LOXIT
33	WCI 310059
