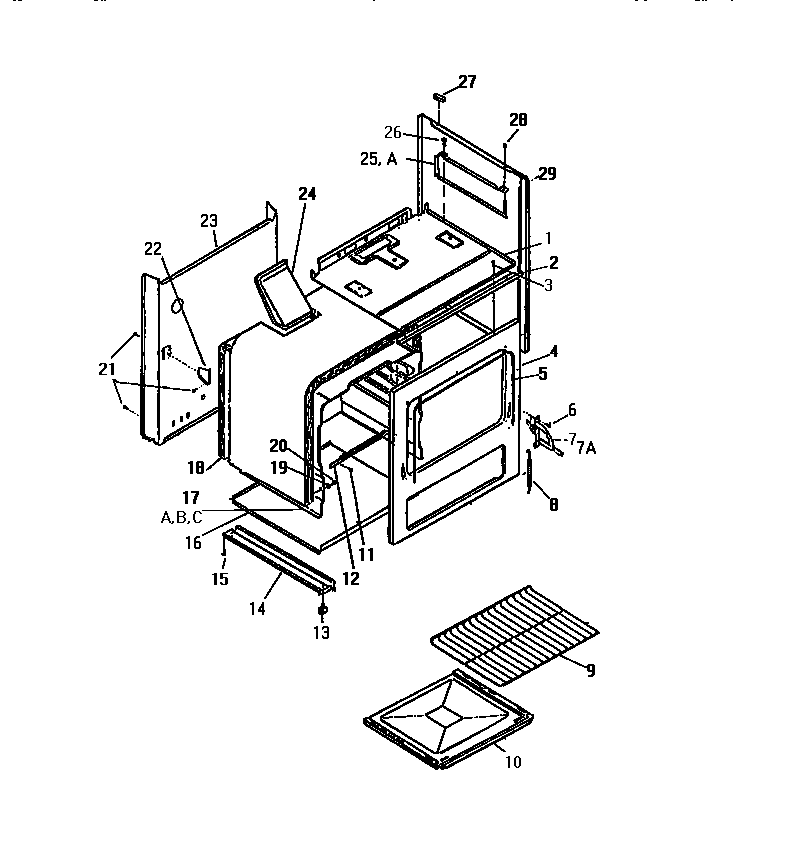

GF300HXW2 05 – BODY, SIDE PANELS

Products

Position	Product
1	WCI Q301968
2	WCI A74076000
4	WCI Q301967
5	WCI AP326052
6	5304500008 Frigidaire Oven Screw
7	WCI A96068000
7A	318348801 Frigidaire Oven Left Side Door Hinge
8	WCI AP339038
9	WCI AP301046
10	WCI Q301977
12	SUPPORT, BTM
13	WCI AP059009
14	BASE RAIL
16	PANEL, BOTTOM
17A	WCI Q301972
17C	WCI Q301974
17B	WCI Q301973
17	WCI Q301971
18	WCI Q134234
19	WCI AP391021
20	WCI AP051045
22	WCI A74060000
23	WCI A5087000
24	WCI A92049000
25A	HEAT SHIELD, LH (NON-ILLUSTRATED)
25	HEAT SHIELD-RH
26	WCI AP051056
27	WCI Q301831
28	WCI AP172002
29	BOTTOM PANEL, RH & LH (WHITE)
