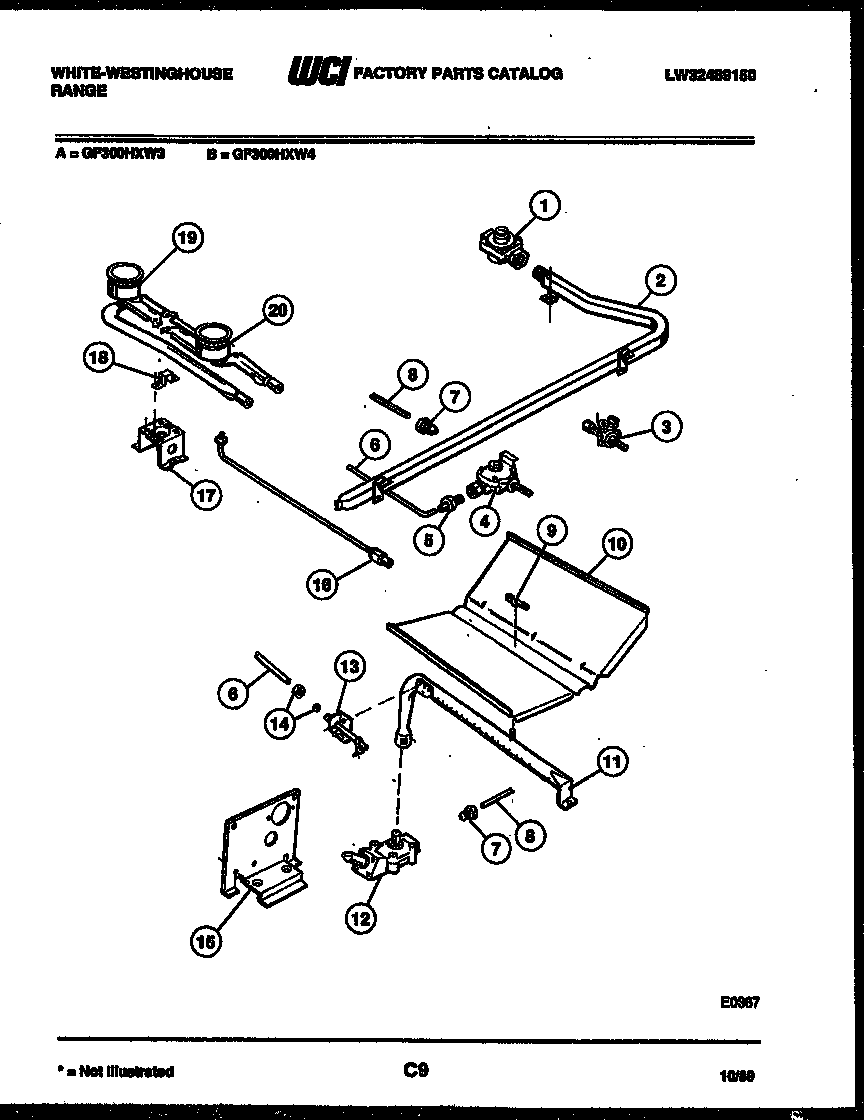

GF300HXW3 04 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
15308007974 Frigidaire Pressure Regulator
2WCI 3017164
3WCI 3131057
4WCI 08013927
5WCI 3131074
6TUBE OVEN PILOT
7WCI 3131064
8TUBE-OVEN FEED
9NUT – WING
10BAFFLE-OVEN BURNER
11WCI 08013855
12WCI 08013942
13PILOT – OVEN
14NUT & SLEEVE
15SUPPORT-OVEN SAFETY VALVE
16PILOT-TOP BURNER (RIGHT)
17SUPPORT – TOP BURNER
18STRAP – PILOT SHIELD
19BURNER – TOP REAR
20BURNER – TOP FRONT
