GF300HXW5 04 – BURNER, MANIFOLD AND GAS CONTROL

GF300HXW5 04 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

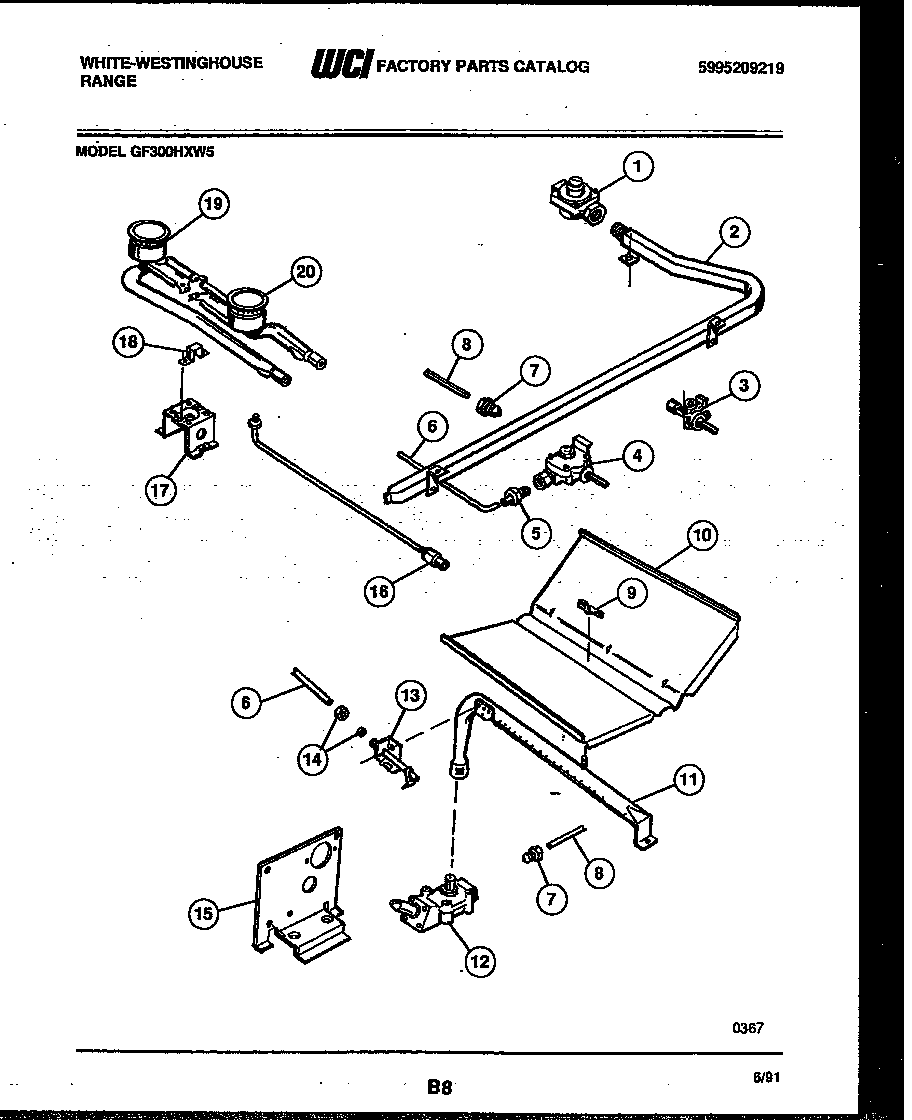

GF300HXW5 04 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*48535WCI 5300009126
15308007974 Frigidaire Pressure Regulator
2WCI 5303017164
3WCI 5303131057
4WCI 5308013927
5NUT
6TUBE-OVEN PILOT
7NUT-LOXIT (3/8)
8TUBE OVEN SUPPLY
9NUT – WING
10BAFFLE-OVEN BURNER
11WCI 5308013855
12WCI 5308013942
13WCI 3205598
14NUT & SLEEVE
15SUPPORT-OVEN SAFETY VALVE
16TUBE-PILOT
17SUPPORT-TOP BURNER
18STRAP – PILOT SHIELD
19Burner,top ,rear
20BURNER-TOP FRONT
