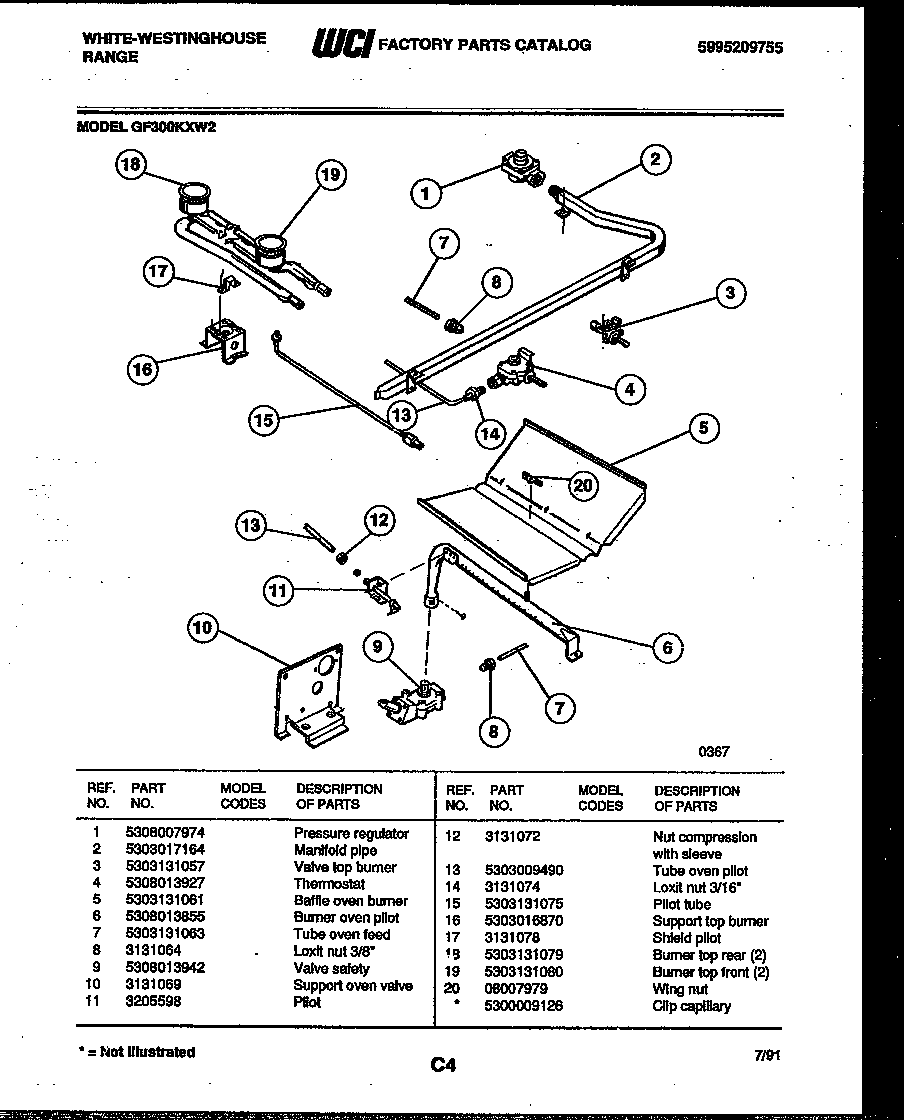

GF300KXD2 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*48611WCI 5300009126
15308007974 Frigidaire Pressure Regulator
2WCI 5303017164
3WCI 5303131057
4WCI 5308013927
5BAFFLE-OVEN BURNER
6WCI 5308013855
7TUBE OVEN SUPPLY
8WCI 3131064
9WCI 5308013942
10SUPPORT-OVEN SAFETY VALVE
11WCI 3205598
12NUT & SLEEVE
13TUBE-OVEN PILOT
14WCI 3131074
15TUBE-PILOT
16SUPPORT-TOP BURNER
17STRAP – PILOT SHIELD
18Burner,top ,rear
19BURNER-TOP FRONT
20NUT – WING
