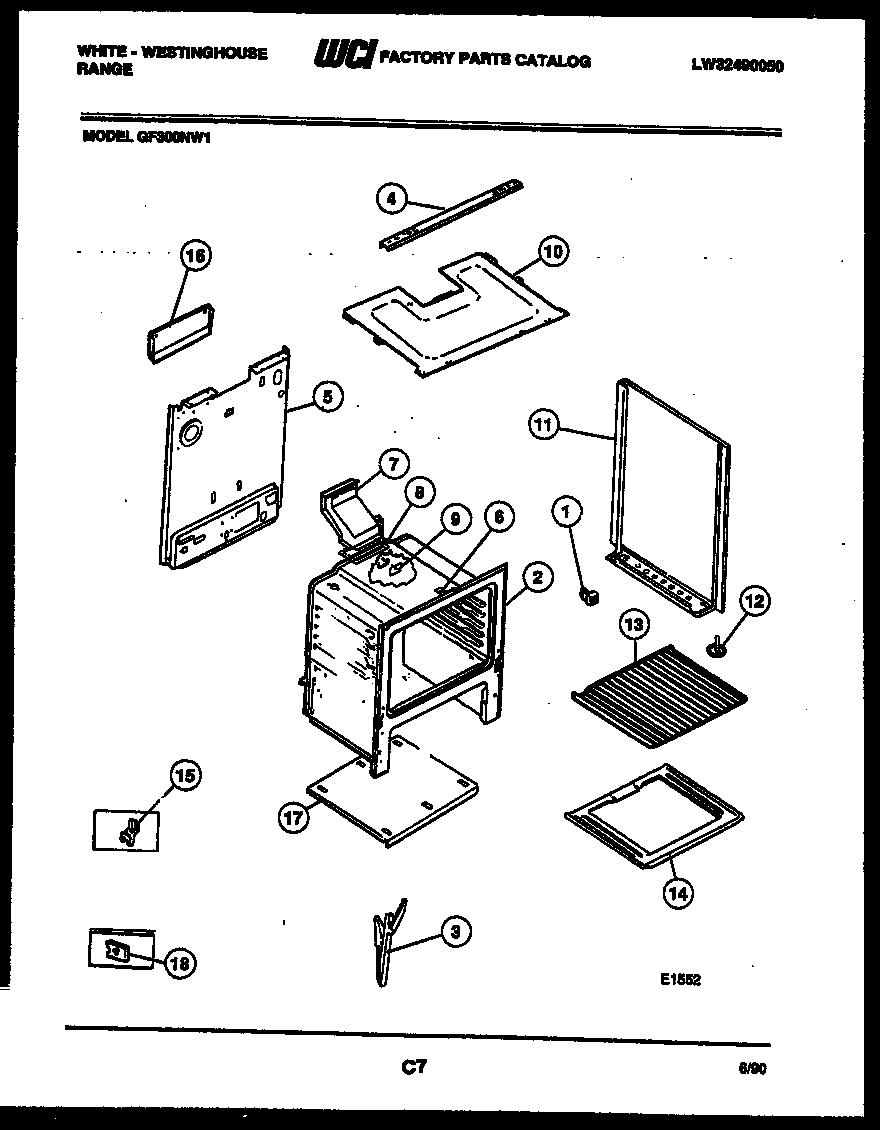

GF300ND1 07 – BODY PARTS

Products

Position	Product
*30918	SHIELD-FLUE, (NON-ILLUSTRATED)
*30917	3051218 Frigidaire Oven Plate
*30918	ANTI-TIP KIT (NOT ILLUSTRATED)
1	SPACER-BODYSIDE, (8)
3	CHAN-DOOR HINGE (2)
4	WCI 3203394
5	WCI 3203082
6	COVER-OVEN FRONT
7	316204402 Frigidaire Oven Flue
8	316542102 Frigidaire Flue Gasket
9	COVER-IGNITOR
10	BURNER BOX BOTTOM
11	PNL-BODYSIDE RH-ALMOND
11A	PNL-BODYSIDE LH-ALMOND
12	SCREW-LEVELING
13	316067902 Frigidaire Oven Rack
14	BTTM-OVEN
14B	INSULATION, OVEN WRAPPER
14A	INSUL – OVEN BACK (NON-ILLUSTRATED)
15	5303284616 Frigidaire Range Bulb Clip Thermostat
16	COVER-VENT
16A	316064600 Frigidaire Oven Support
17	WCI 3131180
18	3203010 Frigidaire Clip
