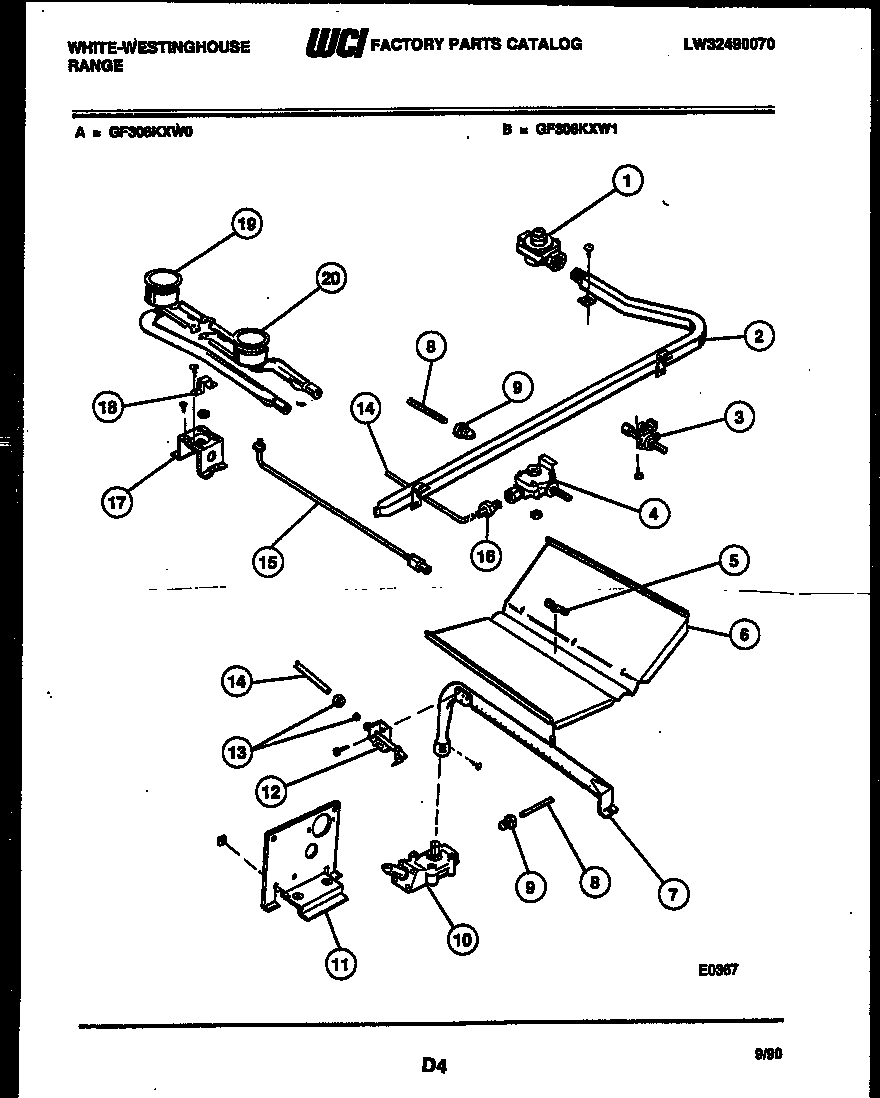

GF306KXD0 04 – BURNER, MANIFOLD AND GAS CONTROL

GF306KXD0 04 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

GF306KXD0 04 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*10370WCI 5300009126
2WCI 3017992
3WCI 5303131057
4WCI 5308013927
55308007974 Frigidaire Pressure Regulator
6BAFFLE-OVEN BURNER
7WCI 5308013855
8TUBE OVEN SUPPLY
9NUT-LOXIT (3/8)
10WCI 5308013942
11SUPPORT-OVEN SAFETY VALVE
12WCI 5303131071
13NUT & SLEEVE
14TUBE-OVEN PILOT
15TUBE-PILOT
16WCI 3131074
17SUPPORT-TOP BURNER
18STRAP – PILOT SHIELD
19Burner,top ,rear
20BURNER-TOP FRONT
