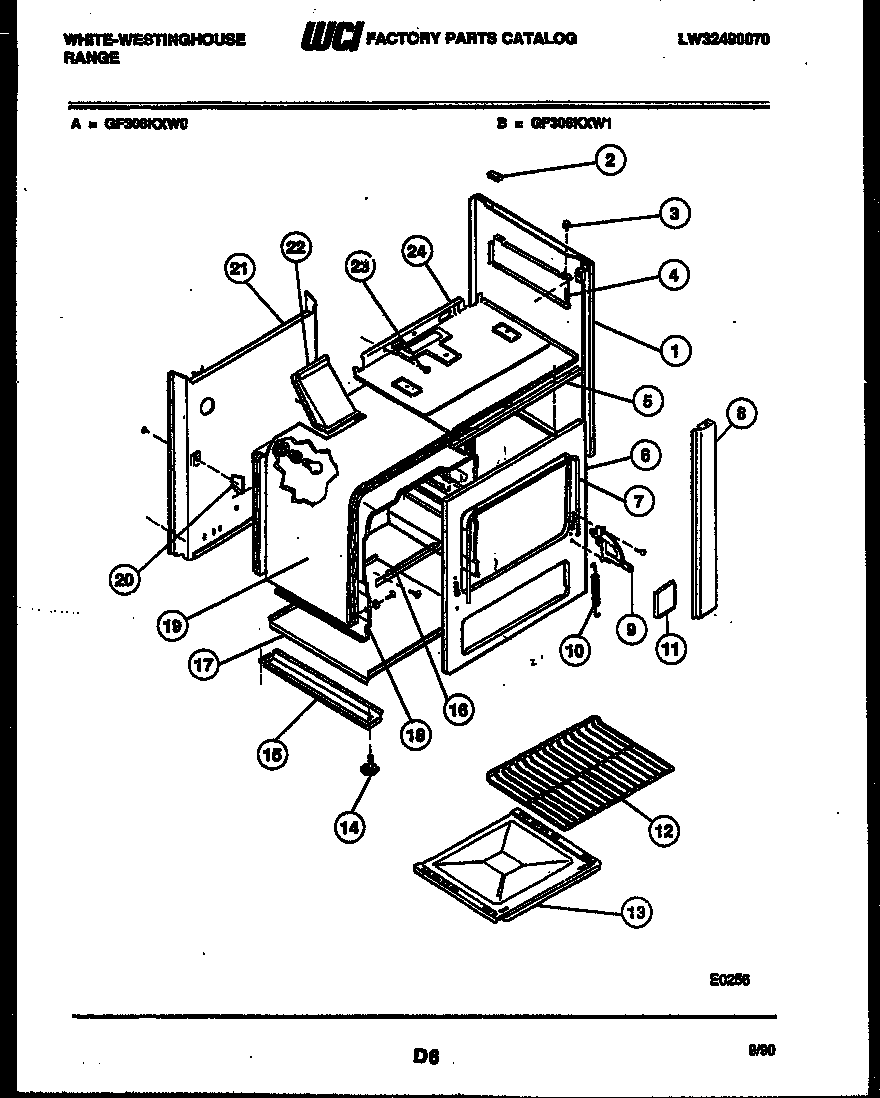

GF306KXD0 05 – BODY PARTS

Products

Position	Product
*10376	ANTI-TIP KIT
1	PANEL BODYSIDE-ALMD
2	WCI 5303016129
3	GROMMET
4A	SHIELD-BURNER BOX LH
4	SHIELD-BURNER BOX RH
5	WCI 08014025
6	WCI 3017048
7	DOOR SEAL
8	PANEL FILLER – ALMOND
9	HINGE ASSY-RH
9A	318348801 Frigidaire Oven Left Side Door Hinge
10	SPRING-OVEN DR (2)
11	SUPPORT – BASE RAIL (2)
12	OVEN RACK (2)
13	LINER BTTM
14	LEG LEVELLER (4)
15	RAIL-BASE
16	SUPPORT-OVEN BOTTOM
17	WCI 3011645
18A	LINER LT SIDE
18C	LINER (TOP)
18	LINER RT SIDE
18B	LINER (BACK)
19	WCI 3017171
19A	WCI 3017172
20	SUPPORT-REAR OVN (2)
21	WCI 08013945
22	WCI 3017173
23	BUSHING-SNAP
24	WCI 3017993
