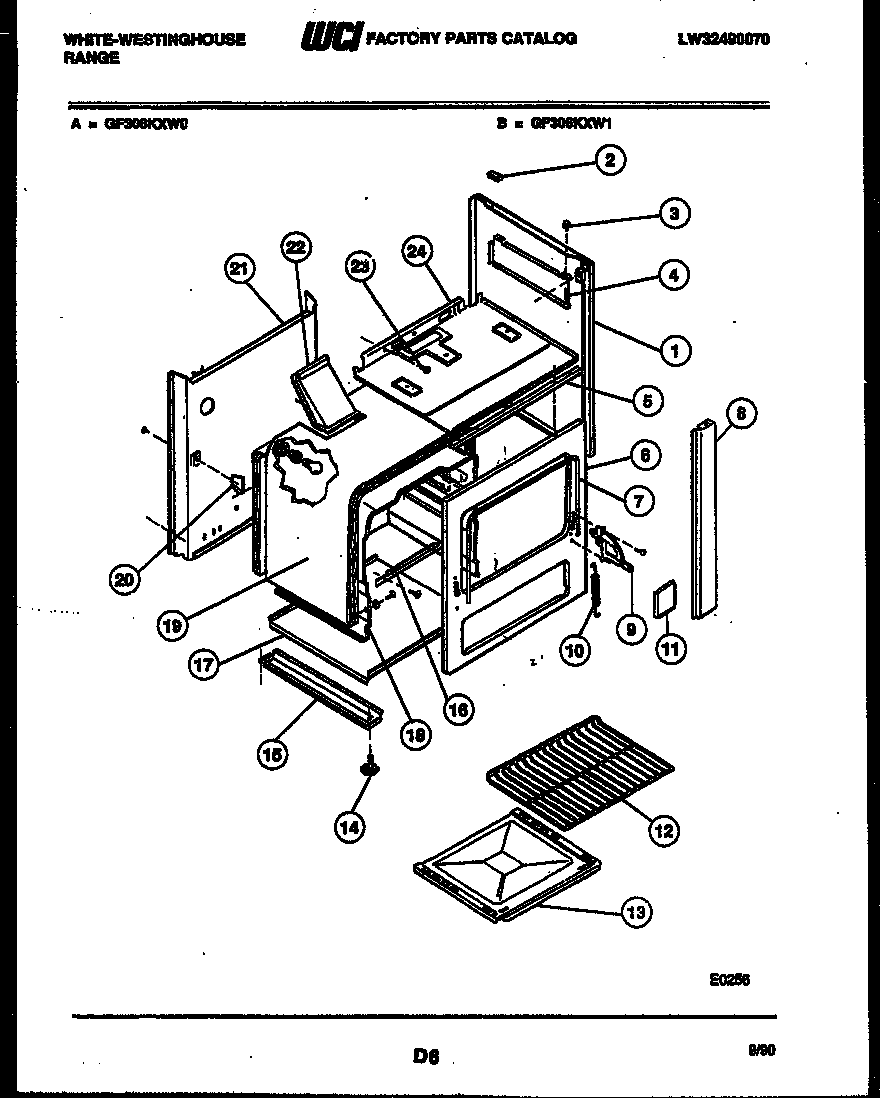

GF306KXW1 05 – BODY PARTS

Products

Position	Product
*10376	ANTI-TIP KIT
1	BODYSIDE PANEL-WHITE (2)
2	GROMMET-MAINTOP
3	GROMMET
4A	SHIELD-BURNER BOX LH
4	SHIELD-BURNER BOX RH
5	SUPPORT-CONTROL PANEL
6	WCI 3205578
7	DOOR SEAL
8	PANEL – FILLER (WHITE)
9	HINGE ASSY-RH
9A	318348801 Frigidaire Oven Left Side Door Hinge
10	SPRING-OVEN DR (2)
11	SUPPORT – BASE RAIL (2)
12	OVEN RACK (2)
13	WCI 3018282
14	LEG LEVELLER (4)
15	RAIL-BASE
16	SUPPORT-OVEN BOTTOM
17	WCI 3011645
18A	OVEN LINER-SIDE LH
18C	WCI 3018347
18B	WCI 3018995
18	OVEN LINER-SIDE RH
19A	WCI 3017172
19	WCI 3017171
20	SUPPORT-REAR OVN (2)
21	WCI 08013945
22	WCI 3017173
24	WCI 3017993
24A	WCI 08008051
