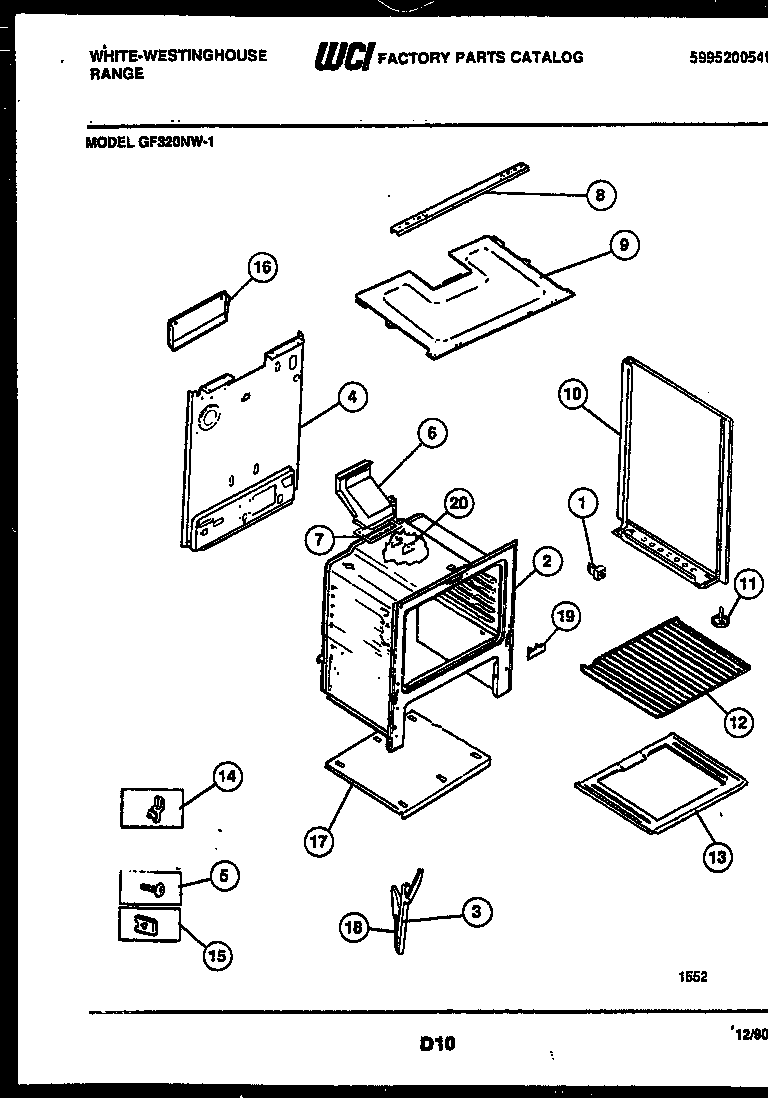

GF320NW1 07 – BODY PARTS

Products

Position	Product
*37227	3051218 Frigidaire Oven Plate
1	SPACER-BODYSIDE, (8)
3	CHAN-DOOR HINGE (2)
4	WCI 3203082
5	316282700 Frigidaire Oven Screw
6	316204402 Frigidaire Oven Flue
7	316542102 Frigidaire Flue Gasket
8	WCI 3203394
9	BURNER BOX BOTTOM
10A	PNL-BODYSIDE LH-WHITE
10	PNL-BODYSIDE RH-WHITE
11	SCREW-LEVELING
12	316067902 Frigidaire Oven Rack
13A	INSULATION, OVEN WRAPPER
13B	INSUL – OVEN BACK (NON-ILLUSTRATED)
13	BTTM-OVEN
14	5303284616 Frigidaire Range Bulb Clip Thermostat
15	3203010 Frigidaire Clip
16	COVER-VENT
16A	316064600 Frigidaire Oven Support
17	WCI 5303270160
18	WCI 3131575
19	COVER-OVEN FRONT
19A	ANTI-TIP KIT (NOT ILLUSTRATED)
19B	SHIELD-FLUE, (NON-ILLUSTRATED)
20	COVER-IGNITOR
