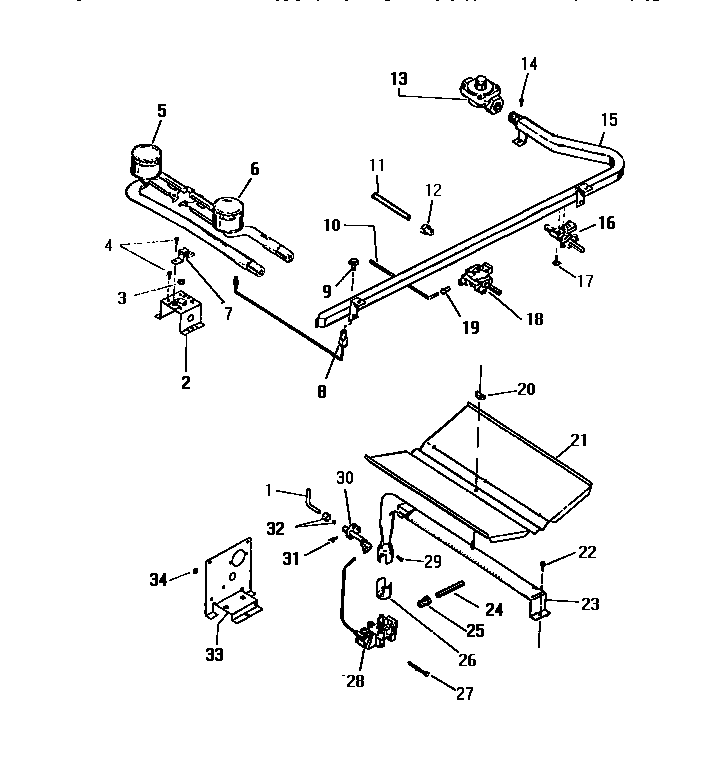

GF410HXH0 04 – BURNER ASSEMBLY

Products

Position	Product
2	WCI Q301866
3	PAL NUT
4	WCI APO51056
5	WCI Q301865
6	WCI Q301861
7	WCI Q301966
8	WCI Q301877
9	BOLT
10	TUBING
13	5308007974 Frigidaire Pressure Regulator
15	WCI Q301863
16	WCI Q301873
17	WCI AP051027
18	WCI Q301859
19	NUT
20	WING NUT
21	WCI A9010000
22	WCI AP051056
23	WCI Q301880
24	TUBING
25	BUT - 3/8 LOXIT
26	WCI AIR SHUTTER
27	BOLT
28	WCI Q301872
29	SCREW
30	WCI Q301876
31	SCREW
32	WCI Q301878
33	SUPPORT
34	WCI Q402302
