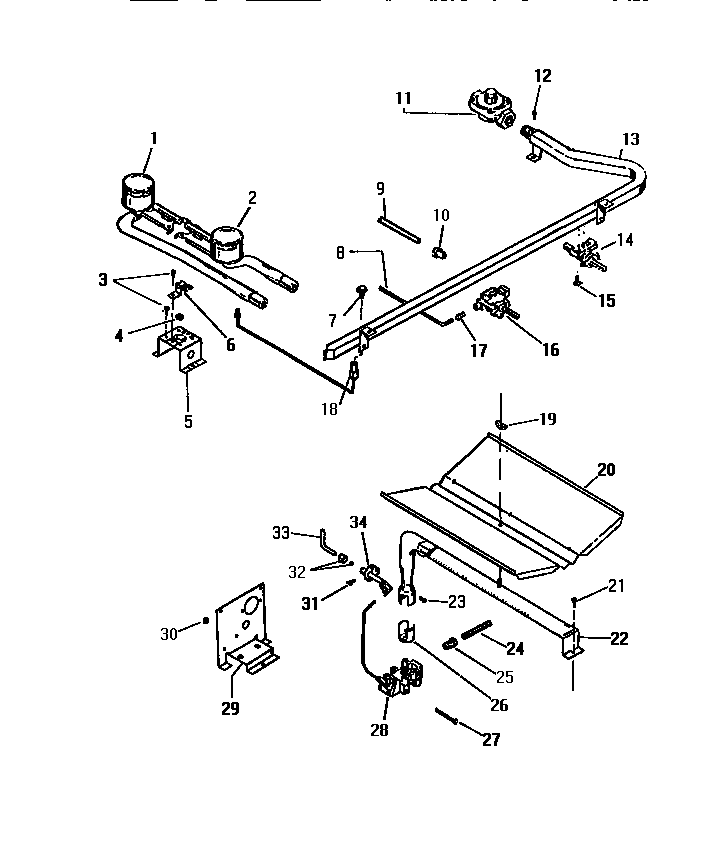

GF410HXS2 04 – BURNER ASSEMBLY

Products

Position	Product
1	WCI Q301865
2	WCI Q301861
4	PAL NUT
5	WCI Q301866
6	WCI Q301966
7	BOLT
11	5308007974 Frigidaire Pressure Regulator
13	WCI Q310059
14	WCI Q301873
15	WCI AP051027
16	WCI Q301859
17	NUT
18	WCI Q310058
19	WING NUT
20	WCI A9010000
21	WCI AP051056
22	WCI Q301880
23	SCREW
24	TUBING
25	BUT - 3/8 LOXIT
26	WCI Q301879
27	BOLT
28	WCI Q301872
29	SUPPORT
30	WCI Q402302
31	SCREW
32	WCI Q301878
33	TUBING
34	WCI Q301876
