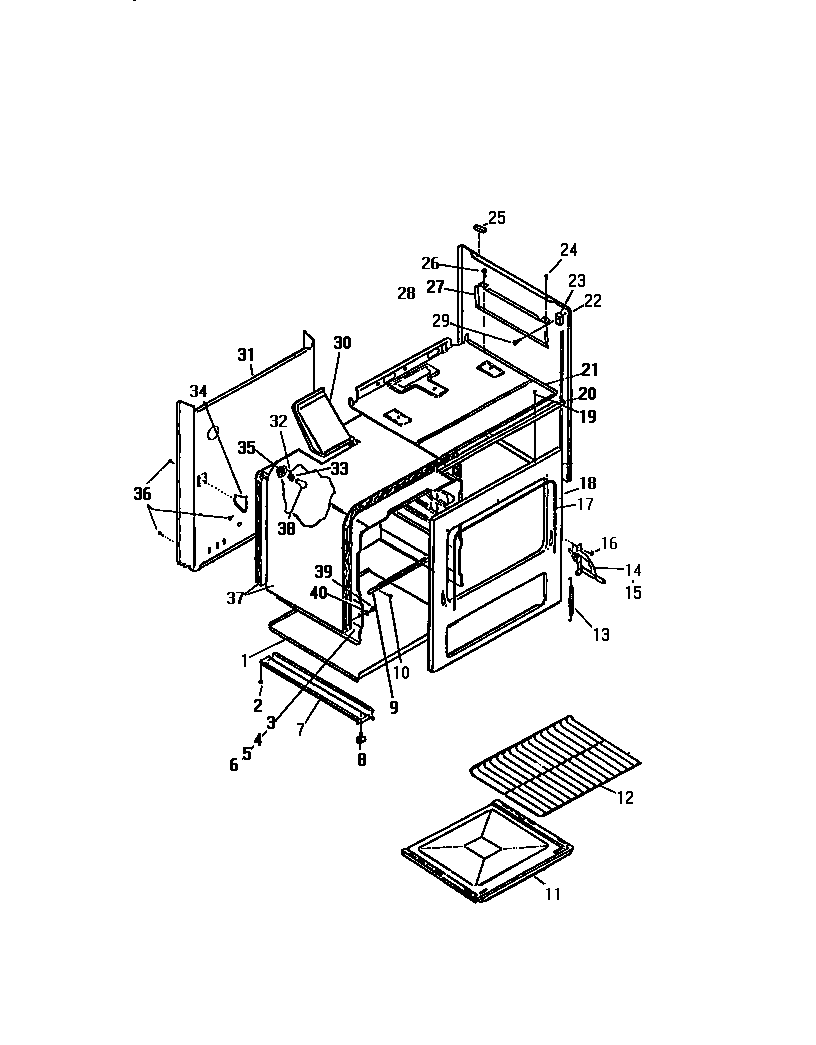

GF420HXV3 05 – BODY, SIDE PANELS

Products

Position	Product
1	PANEL, BOTTOM
3	WCI Q301971
4	WCI Q301972
5	WCI Q301973
6	WCI Q310085
7	WCI A9837000
8	WCI AP059009
9	SUPPORT, BTM
11	WCI Q301977
12	WCI AP301046
13	WCI AP339038
14	WCI A96068000
15	318348801 Frigidaire Oven Left Side Door Hinge
17	WCI AP326052
18	WCI Q301967
20	WCI A74076000
21	WCI Q301968
22	BOTTOM PANEL, LH & RH (WHEAT)
23	WCI Q310084
24	WCI AP172002
25	WCI Q301831
27	HEAT SHIELD-RH
28	HEAT SHIELD, LH (NON-ILLUSTRATED)
30	WCI A92049000
31	WCI A5087000
32	5304500008 Frigidaire Oven Screw
33	WCI Q310061
34	WCI A7406000
35	WCI Q310063
36	WCI AP051056
37	WCI Q134234
38	WCI Q63749
39	WCI AP051045
40	WCI AP391021
