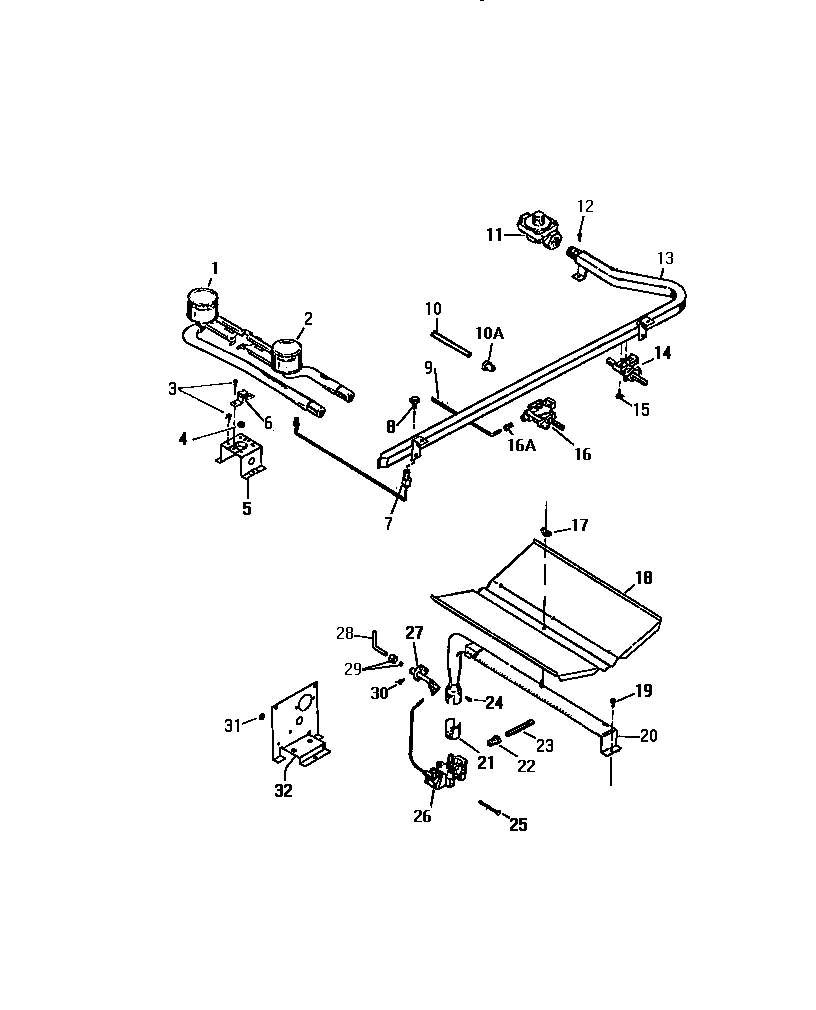

GF420HXW3 04 – BURNER ASSY.

Products

Position	Product
1	WCI Q301865
2	WCI Q301861
4	PAL NUT
5	WCI Q301866
6	WCI Q301966
7	WCI Q310058
8	BOLT
9	TUBING
11	5308007974 Frigidaire Pressure Regulator
13	WCI Q310059
14	WCI Q301873
15	WCI AP051027
16	WCI Q301859
16A	NUT
17	WING NUT
18	WCI A9010000
19	WCI AP051056
20	WCI Q301880
21	WCI Q301879
22	BUT – 3/8 LOXIT
23	TUBING
24	SCREW
25	BOLT
26	WCI Q301872
27	WCI Q301876
28	WCI AP377032
29	WCI Q301878
30	SCREW
31	WCI Q402302
32	SUPPORT
