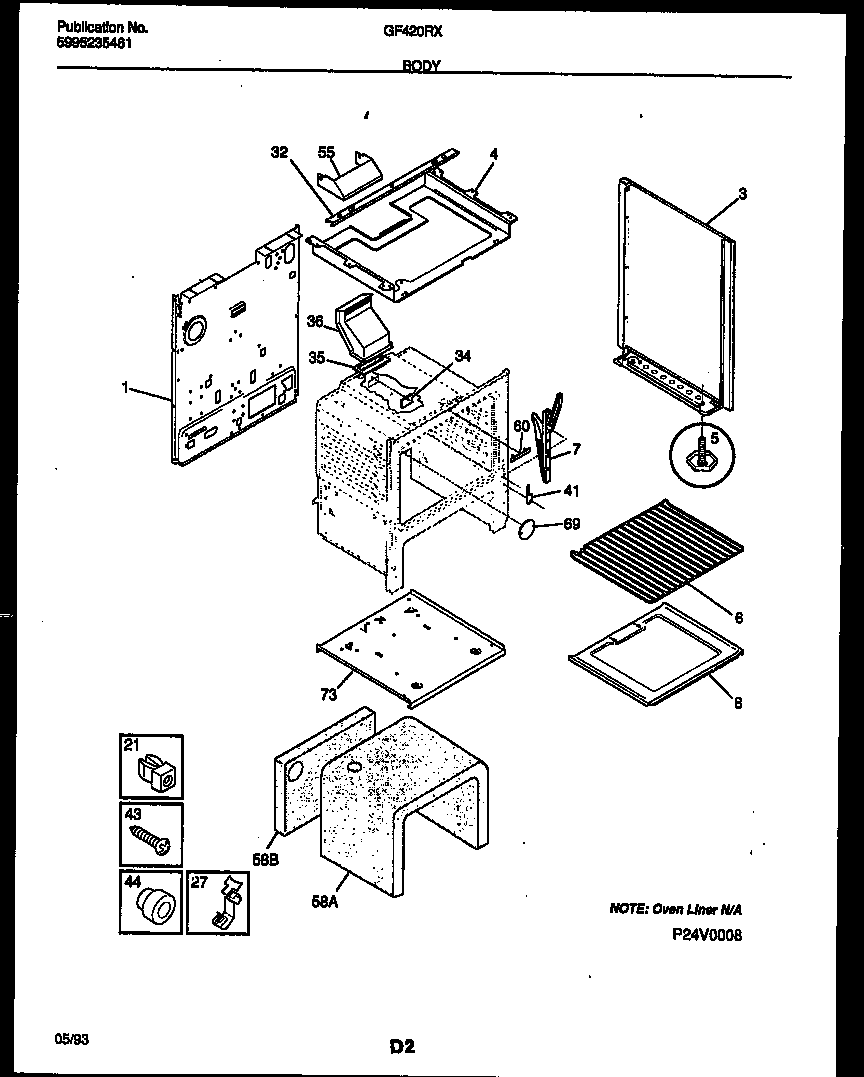

GF420RXD2 04 – BODY PARTS

GF420RXD2 04 – BODY PARTS

Written by

in

GF420RXD2 04 – BODY PARTS

Products

PositionProduct
*74806WCI 5303280614
1WCI 3203082
3AWCI 5303269545
3WCI 5303269543
4BURNER BOX BOTTOM
5ANUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5SCREW-LEVELING
5BANTI-TIP KIT (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8BTTM-OVEN
8A316064600 Frigidaire Oven Support
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
32CHANNEL-BURNER BOX
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 3131904
41WCI 3131570
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
55ASHIELD-FLUE, (NON-ILLUSTRATED)
55SHIELD-TOP (NON-ILLUSTRATED)
58AINSULATION, OVEN WRAPPER
58BINSUL – OVEN BACK (NON-ILLUSTRATED)
60COVER-OVEN FRONT
693051218 Frigidaire Oven Plate
73BASE-BROIL
