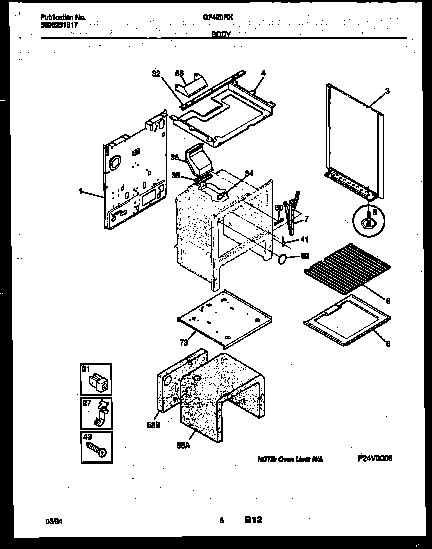

GF420RXD3 04 – BODY PARTS

Products

Position	Product
*89676	WCI 5303280614
1	WCI 3203082
3	PNL-B/S-RH-WHITE
3A	PNL-B/S-LH-WHITE
4	BURNER BOX BOTTOM
5B	NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5A	ANTI-TIP KIT
5	SCREW-LEVELING
6	316067902 Frigidaire Oven Rack
7	Hinge,oven door ,(2)
8	BTTM-OVEN
8A	316064600 Frigidaire Oven Support
21	SPACER-BODYSIDE, (8)
27	5303284616 Frigidaire Range Bulb Clip Thermostat
32	CHANNEL-BURNER BOX
34	COVER-IGNITOR
35	316542102 Frigidaire Flue Gasket
36	WCI 3131904
41	WCI 3131570
43	316282700 Frigidaire Oven Screw
55A	SHIELD-FLUE, (NON-ILLUSTRATED)
55	SHIELD-TOP (NON-ILLUSTRATED)
58A	INSULATION, OVEN WRAPPER
58B	INSUL - OVEN BACK (NON-ILLUSTRATED)
60	COVER-OVEN FRONT
69	3051218 Frigidaire Oven Plate
73	BASE-BROIL
