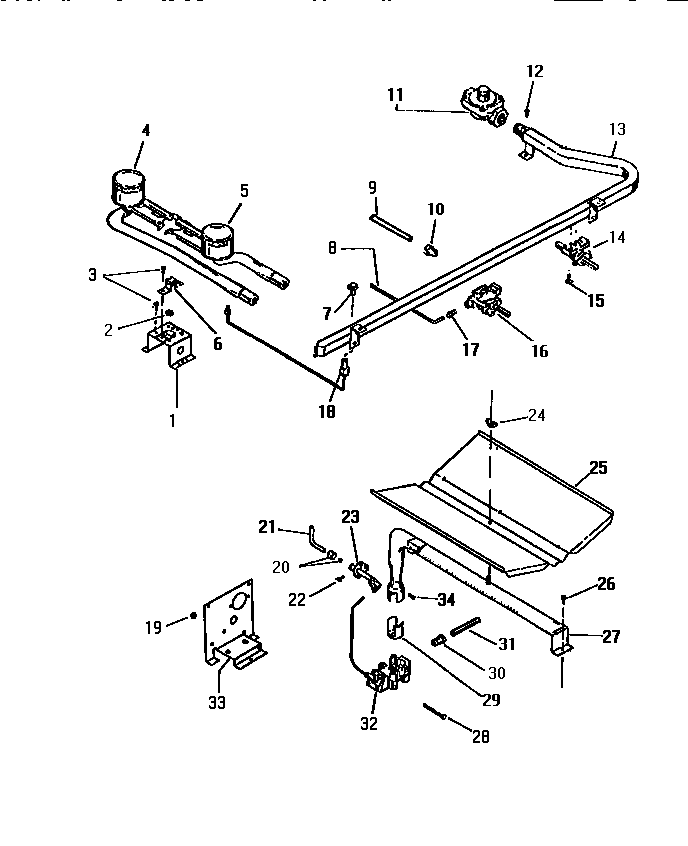

GF470HXW2 04 – BURNER ASSEMBLY

Products

Position	Product
1	WCI Q301866
2	PAL NUT
4	WCI Q301965
5	WCI Q301861
6	WCI Q301966
7	BOLT
11	5308007974 Frigidaire Pressure Regulator
13	WCI Q310059
14	WCI Q301873
15	WCI AP051027
16	WCI Q301859
17	NUT
18	WCI Q310058
19	WCI Q402302
20	WCI Q301878
21	TUBING
22	SCREW
23	WCI Q301876
24	WING NUT
25	WCI A9010000
26	WCI AP051056
27	WCI Q301880
28	BOLT
29	WCI Q301879
30	BUT - 3/8 LOXIT
31	TUBING
32	WCI Q301872
33	SUPPORT
34	SCREW
