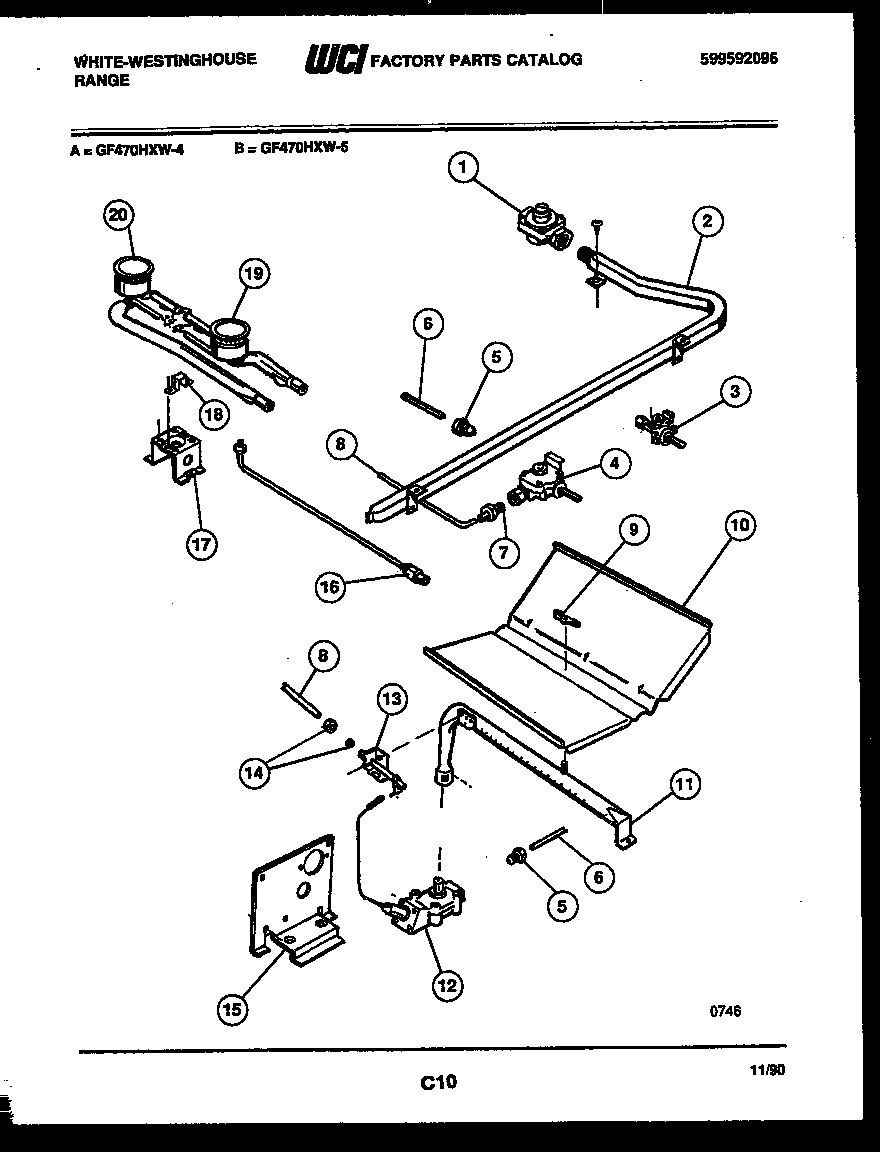

GF470HXW4 04 – BURNER, MANIFOLD AND GAS CONTROL

GF470HXW4 04 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

GF470HXW4 04 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*16264CLIP CAPILLARY (2)
15308007974 Frigidaire Pressure Regulator
2WCI 5303017164
3WCI 5303131057
4WCI 5308013927
5NUT-LOXIT (3/8)
6TUBE OVEN SUPPLY
7WCI 3131074
8TUBE-OVEN PILOT
9NUT – WING
10WCI 530313061
11WCI 5308013855
12WCI 5308013942
13WCI Q000301876
14NUT & SLEEVE
15SUPPORT-OVEN SAFETY VALVE
16TUBE-PILOT
17SUPPORT-TOP BURNER
18STRAP – PILOT SHIELD
19BURNER-TOP FRONT
20Burner,top ,rear
