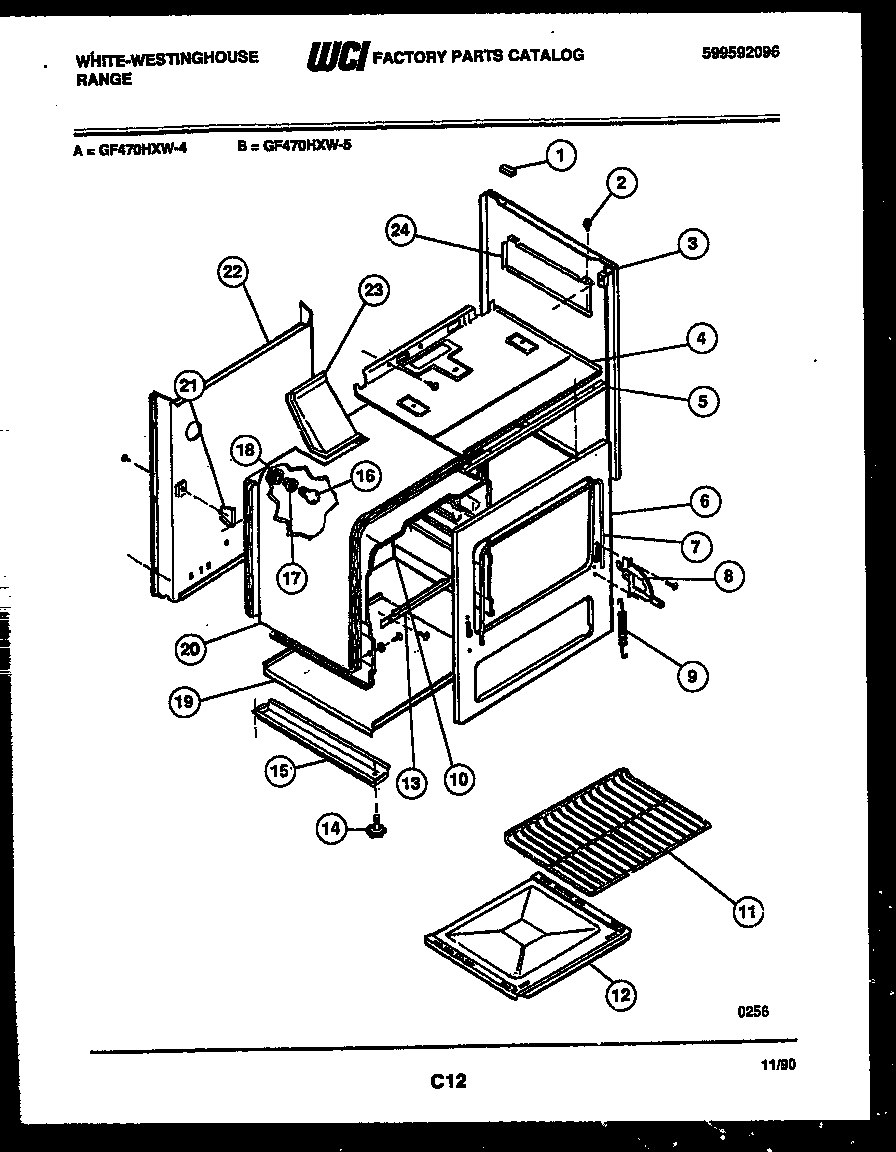

GF470HXW4 05 – BODY PARTS

Products

Position	Product
*16270	ANTI-TIP KIT
*16270	WCI P236366
1	GROMMET MAIN TOP
2	GROMMET
3	BODYSIDE PANEL-WHITE (2)
4	WCI 3017174
5	SUPPORT CONTROL PNL
6	WCI 3017790
7	DOOR SEAL
8	318348801 Frigidaire Oven Left Side Door Hinge
8	HINGE ASSY-RH
9	SPRING-OVEN DOOR (2)
10	WCI 3018710
10	WCI 3018712
10	WCI 3018711
10	WCI 3018709
11	OVEN RACK (2)
12	WCI 3018282
13	SUPPORT-OVEN BOTTOM
14	LEG LEVELLER (4)
15	RAIL-BASE, LH
15	Rail,base ,RH
16	316538904 Frigidaire Oven Lamp Light
17	316116400 Frigidaire Oven Light Socket
18	WCI 3051511
19	WCI 3011645
20	WCI 3017172
20	WCI 3017171
21	SUPPORT-REAR OVN (2)
22	WCI 5303013340
23	WCI 3017173
24	SHIELD-BURNER BOX LH
24	SHIELD-BURNER BOX RH
