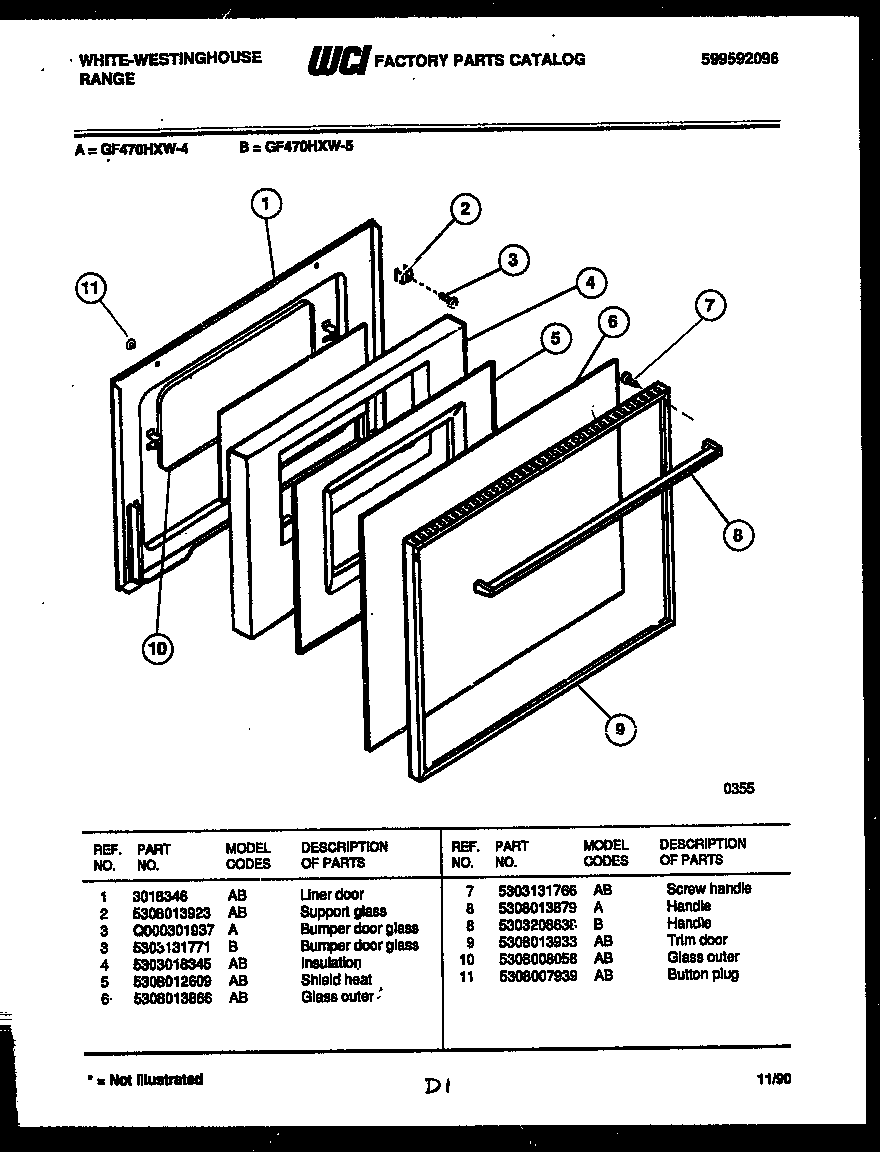

GF470HXW4 07 – DOOR PARTS

Written by

Products

Position	Product
1	LINER-OVEN DOOR
2	WCI 5308013923
3	BUMPER DOOR GLASS
4	WCI 5303018345
5	SHIELD OVEN DR HEAT
6	GLASS OUTER
7	SCREW, TOP TRIM, 6-32 X 3/8 (NOT ILLUSTRATED)
8	HANDLE
9	TRIM DOOR
10	WCI 5308008058
11	PLUG, DOOR LINER
