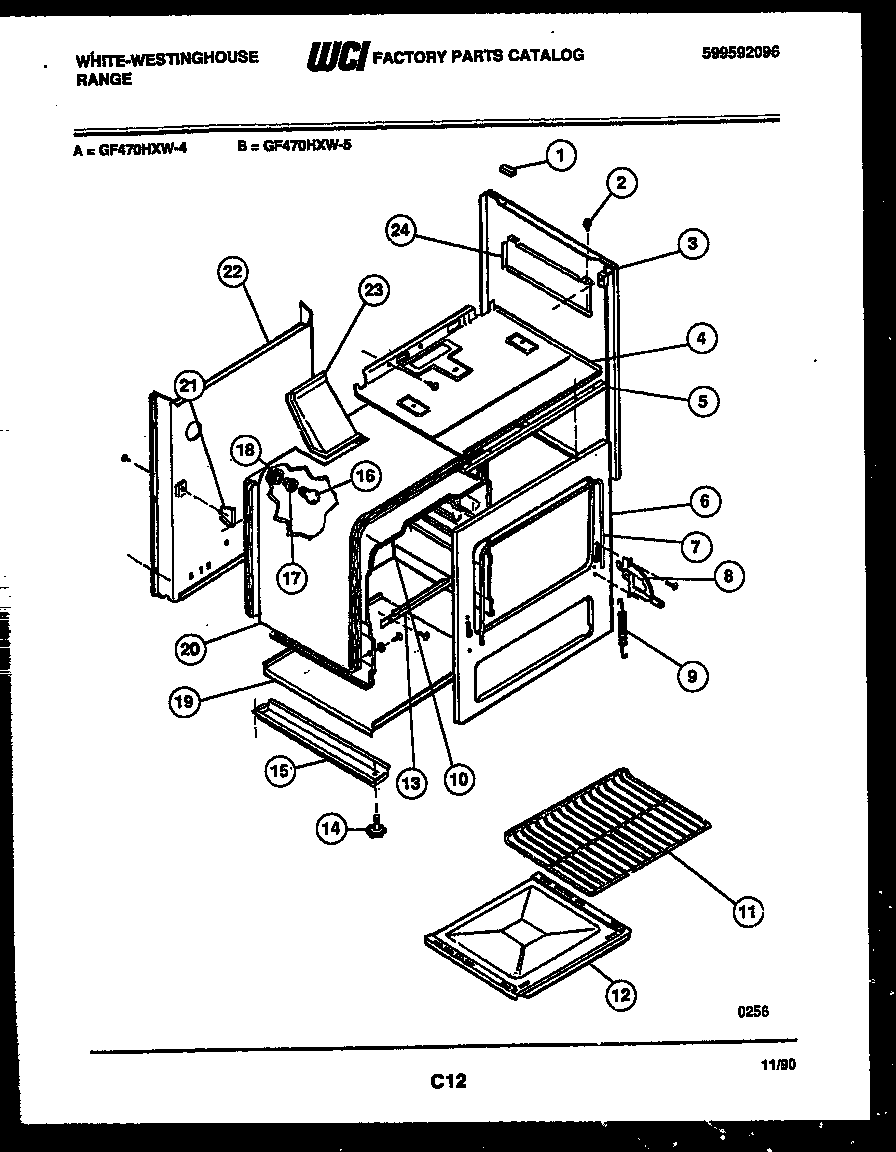

GF470HXW5 05 – BODY PARTS

Products

Position	Product
*16270	WCI P236366
*16270	CLIP BACKSPLASH CORNER
*16270	ANTI-TIP KIT
1	GROMMET-MAINTOP
2	GROMMET
3	BODYSIDE PANEL-WHITE (2)
4	WCI 3017174
5	SUPPORT CONTROL PNL
6	WCI 3205578
7	DOOR SEAL
8	HINGE ASSY-RH
8	318348801 Frigidaire Oven Left Side Door Hinge
9	SPRING-OVEN DOOR (2)
10	WCI 3018712
10	WCI 3018713
10	WCI 3018710
10	WCI 3018709
11	OVEN RACK (2)
12	WCI 3018282
13	SUPPORT-OVEN BOTTOM
15	BASE-RAIL (2)
16	316538904 Frigidaire Oven Lamp Light
18	WCI 3051511
19	WCI 3011645
20	WCI 3017171
20	WCI 3017172
21	SUPPORT-REAR OVN (2)
22	WCI 5303013340
23	WCI 3017173
24	SHIELD-BURNER BOX RH
24	SHIELD-BURNER BOX LH
