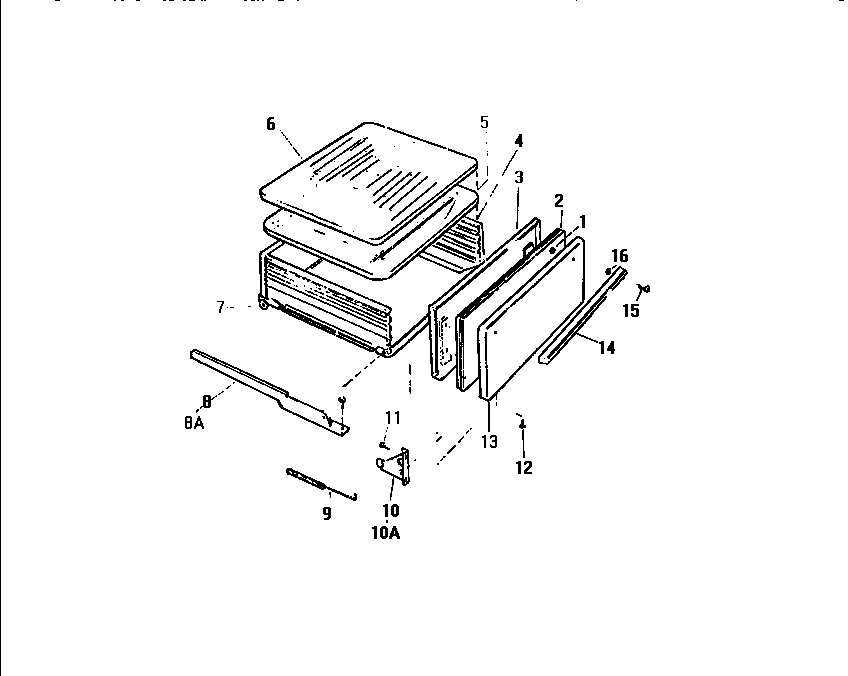

GF501HXD0 07 – BROILER DRAWER

GF501HXD0 07 – BROILER DRAWER

Written by

in

GF501HXD0 07 – BROILER DRAWER

Products

PositionProduct
1WCI AP265008
2WCI Q138829
3WCI Q301883
4WCI Q301881
5WCI A53002000
6WCI A43001000
7WCI AP031004
8WCI A96070000
8AWCI A96069000
9SPRING
10AHINGE-RH
10HINGE-LH
12WCI AP051056
13WCI A98350004
14WCI Q301812
155303292012 Frigidaire Oven Screw
16WCI Q61664
