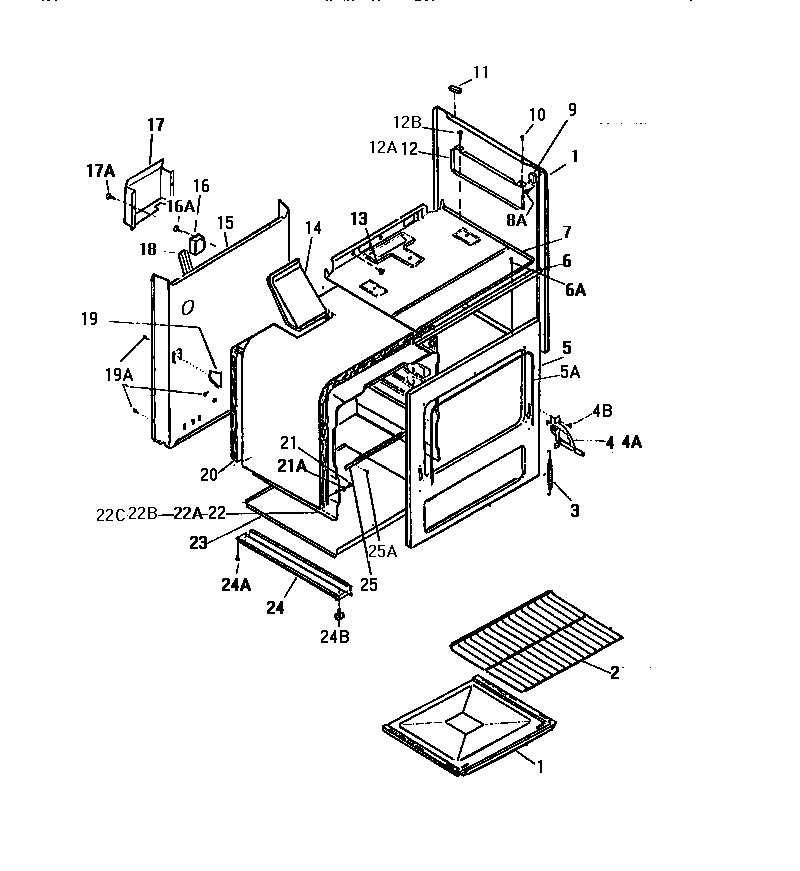

GF501HXD1 05 – BODY, SIDE PANELS

Products

Position	Product
1	WCI Q301970
2	WCI AP301042
3	WCI AP339053
4B	5304500008 Frigidaire Oven Screw
4A	318348801 Frigidaire Oven Left Side Door Hinge
4	WCI A96068000
5A	WCI AP326050
5	WCI Q301834
6	SUPPORT-CONTROL PNL
7	WCI Q310057
8	BOTTOM PANEL, LH & RH (ALMOND)
9	WCI Q310084
10	WCI AP172002
11	WCI Q301831
12A	HEAT SHIELD, LH (NON-ILLUSTRATED)
12	HEAT SHIELD-RH
13	WCI AP074001
14	WCI A92049000
15	WCI A5085000
16	WCI Q301950
17	WCI Q310077
18	WCI Q310003
19	WCI A74060000
20	WCI Q134234
21A	WCI AP391021
21	WCI AP051045
22	WCI Q301972
22C	OVEN WRAPPER PANELS, BACK
22B	OVEN WRAPPER PANELS, TOP
22A	WCI Q301971
23	PANEL, BOTTOM
24B	WCI AP059009
24	BASE RAIL
25A	WCI AP051056
25	SUPPORT, BTM
