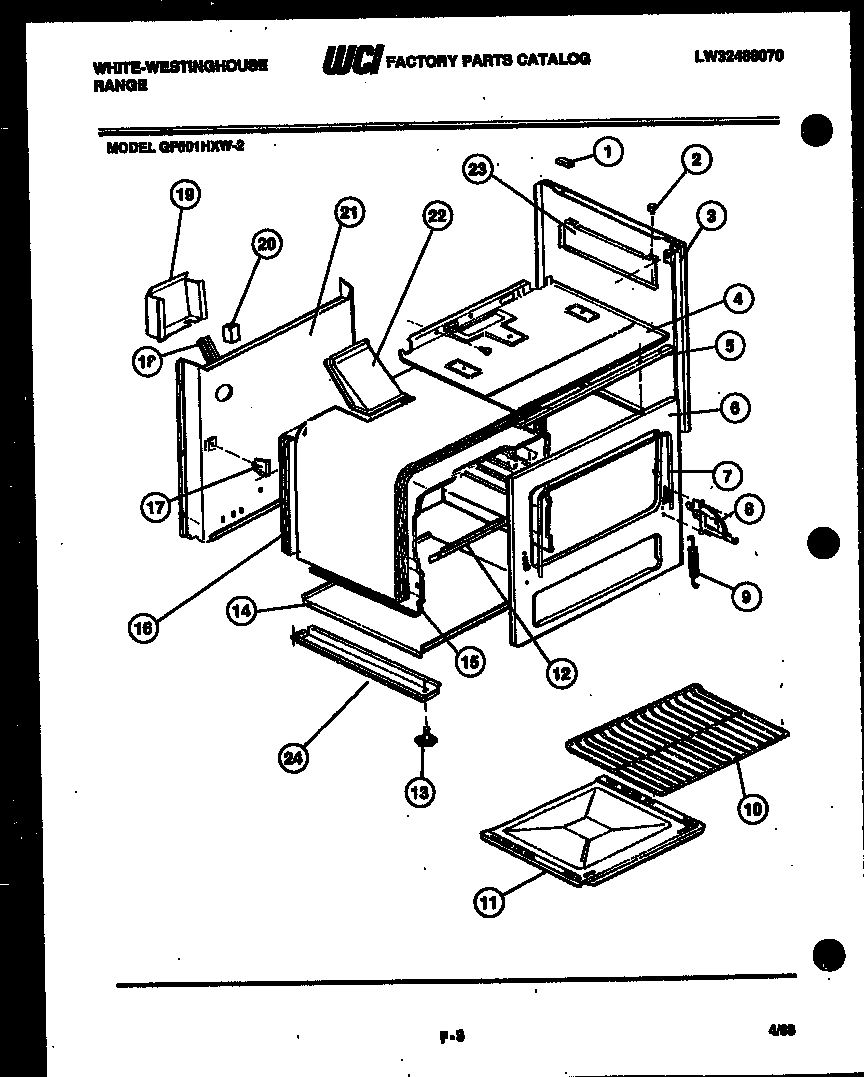

GF501HXD2 05 – BODY PARTS

Products

Position	Product
*92735	CLIP BACKSPLASH CORNER
1	GROMMET MAIN TOP
2	WCI AP00172002
3	WCI Q000301946
4	BURNER BOX
5	WCI A074062000
6	WCI 3051068
7	WCI AP00326050
8	HINGE DOOR RT
8	318348801 Frigidaire Oven Left Side Door Hinge
9	WCI AP00339053
10	WCI 3016158
11	WCI 3131037
12	WCI A074055000
13	WCI Q000310108
14	WCI A011049000
15	LINER RT SIDE
15	LINER LT SIDE
15	WCI 3131035
15	WCI 3131034
16	INSULATION WRAPPER
17	WCI A074060000
18	WCI Q000310003
19	WCI 3131047
20	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
21	BACK-MAIN
22	WCI 3017173
23	WCI A061074000
23	WCI A061044000
24	BASE-RAIL (2)
