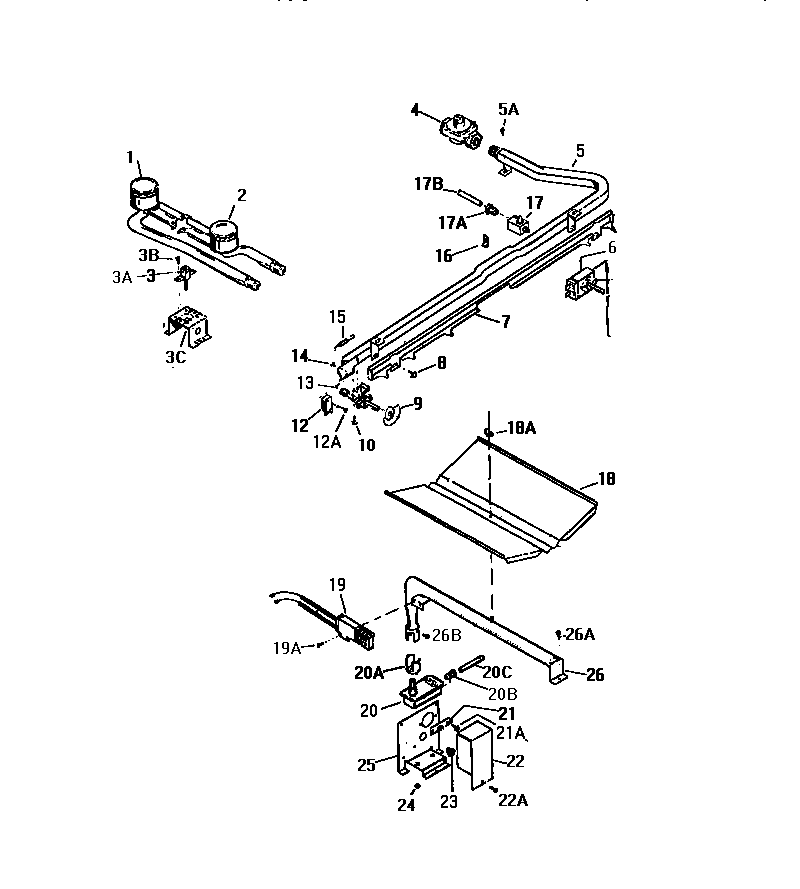

GF501HXF0 04 – BURNER ASSEMBLY

Products

Position	Product
1	WCI Q301865
2	WCI Q301861
3C	WCI Q301866
3A	WCI Q310074
3	WCI Q301862
4	5308007974 Frigidaire Pressure Regulator
5	WCI Q310075
6	WCI Q301858
7	WCI Q310076
8	WCI Q301839
9	WCI A22002000
10	WCI Q310002
12A	SCREW
12	WCI Q301874
13	WCI Q301873
14	NUT
15	WCI Q301869
16	CLIP, CAP. TUBE
17	VALVE
17A	BUT – 3/8 LOXIT
18A	WING NUT
18	WCI A9010000
19	5303935066 Frigidaire Oven Flat Igniter 17" Leads
19A	SCREW
20C	WCI Q301867
20B	NUT
20A	SHUTTER
20	WCI Q301871
21	TERMINAL BLOCK
22	VALVE COVER
23	WCI AP074001
24	WCI AP265008
25	SUPPORT
26A	WCI AP051056
26B	SCREW
26	BURNER
