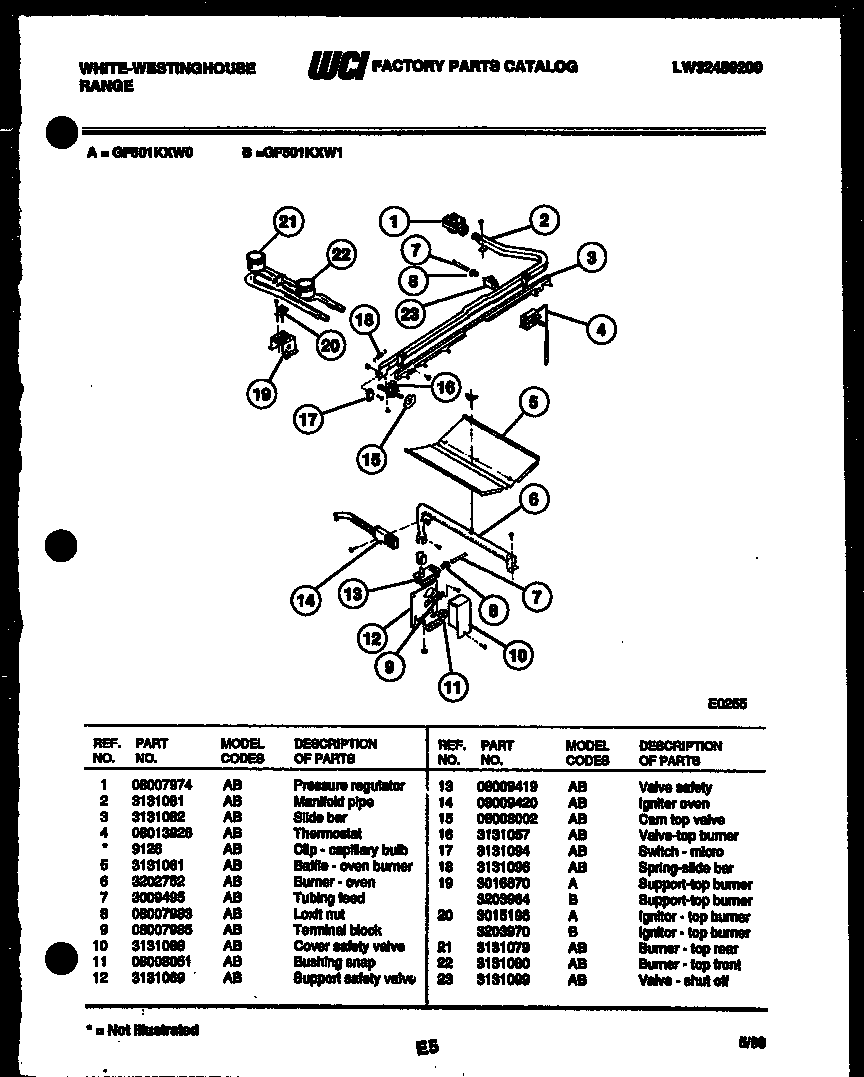

GF501KXD0 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
1	5308007974 Frigidaire Pressure Regulator
2	WCI 3131081
3	SLIDE BAR
4A	CLIP-CAPILLARY (NON-ILLUSTRATED)
4	THERMOSTAT
5	BAFFLE-OVEN BURNER
6	WCI 3202752
7	TUBE - 3/8 FEED
8	LOCK NUT
9	WCI 08007985
10	COVER - OVEN SAFETY VALVE
11	WCI 08008051
12	SUPPORT-OVEN SAFETY VALVE
13	WCI 08009419
14	5303935066 Frigidaire Oven Flat Igniter 17" Leads
15	WCI 08008002
16	WCI 3131057
17	MICRO - SWITCH
18	WCI 3131096
19	SUPPORT - TOP BURNER
20	IGNITER 36``
21	BURNER - TOP REAR
22	BURNER - TOP FRONT
23	WCI 3131099
