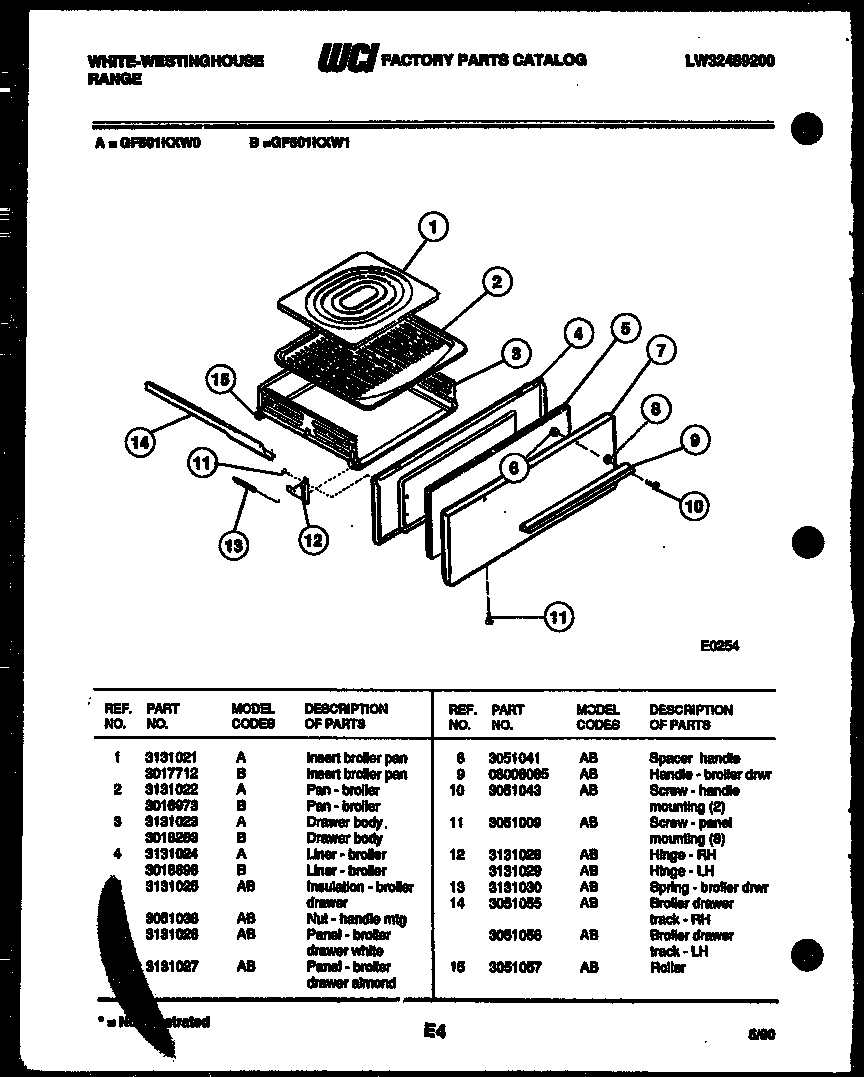

GF501KXW0 04 – BROILER DRAWER PARTS

GF501KXW0 04 – BROILER DRAWER PARTS

Written by

in

GF501KXW0 04 – BROILER DRAWER PARTS

Products

PositionProduct
1WCI 3131021
25304442087 Frigidaire Range Wall Oven Broil Pan and Insert
3WCI 3131023
4LINER – BROILER
5WCI 3131025
65303013272 Frigidaire Oven Nut
7WCI 3131026
8SPACER HANDLE (2)
9WCI 08008085
105303292012 Frigidaire Oven Screw
11WCI 3051009
12AHINGE – LH
12HINGE – RH
13SPRING (2)
14ATRACK LEFT HAND
14TRACK RIGHT HAND
15WCI 3051057
