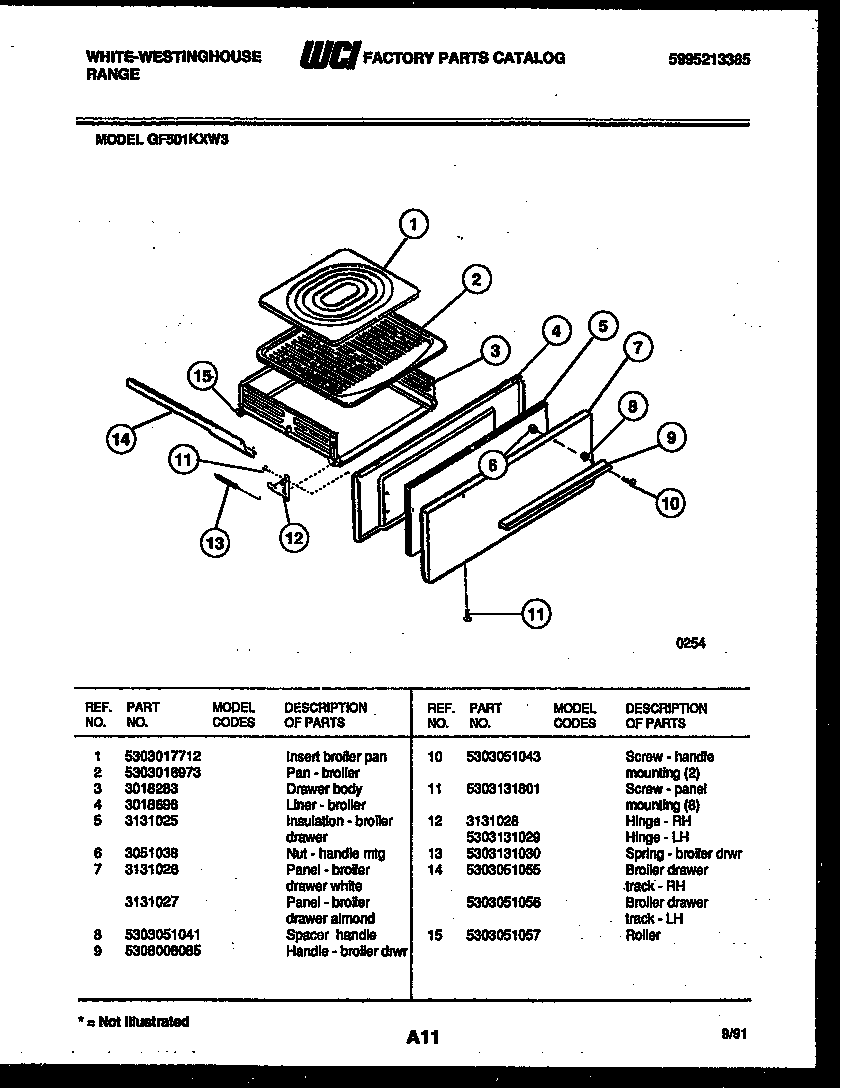

GF501KXW3 04 – BROILER DRAWER PARTS

GF501KXW3 04 – BROILER DRAWER PARTS

Written by

in

GF501KXW3 04 – BROILER DRAWER PARTS

Products

PositionProduct
1WCI 5303017712
2WCI 5303016973
35304504568 Frigidaire Drawer Assembly
4LINER
5WCI 3131025
65303013272 Frigidaire Oven Nut
7WCI 3131026
8SPACER HANDLE
9WCI 5308008085
105303292012 Frigidaire Oven Screw
11SCREW, 10 X 3/8
12AHINGE – LH
12HINGE – RH
13SPRING
14TRACK ASSY-RH
14ATRACK ASSY-LH
15ROLLER
