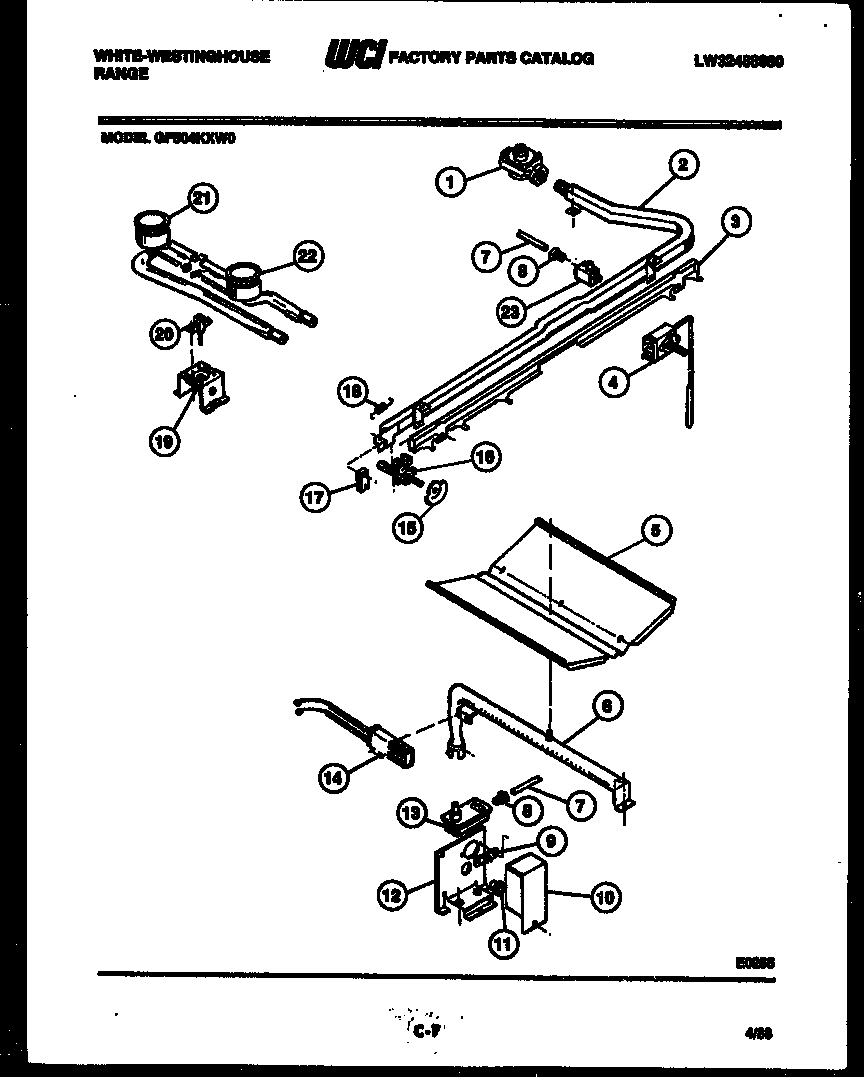

GF504KXD0 04 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
15308007974 Frigidaire Pressure Regulator
2WCI 3017725
3WCI 3017726
4WCI Q000301858
5BAFFLE OVEN
6WCI AP00072025
7TUBING-OVEN SPLY 3/8
8LOXIT – NUT (2)
9WCI AP00042025
10COVER, OVEN VALVE
11SNAP – BUSHING
12WCI A074054000
13WCI Q000301871
145303935066 Frigidaire Oven Flat Igniter 17" Leads
15WCI A022002000
16WCI Q000301873
17WCI Q000301874
18WCI Q000301869
19SUPPORT – TOP BURNER
20IGNITER 36“
21WCI Q002500102
22WCI Q002500101
23WCI QP00385174
