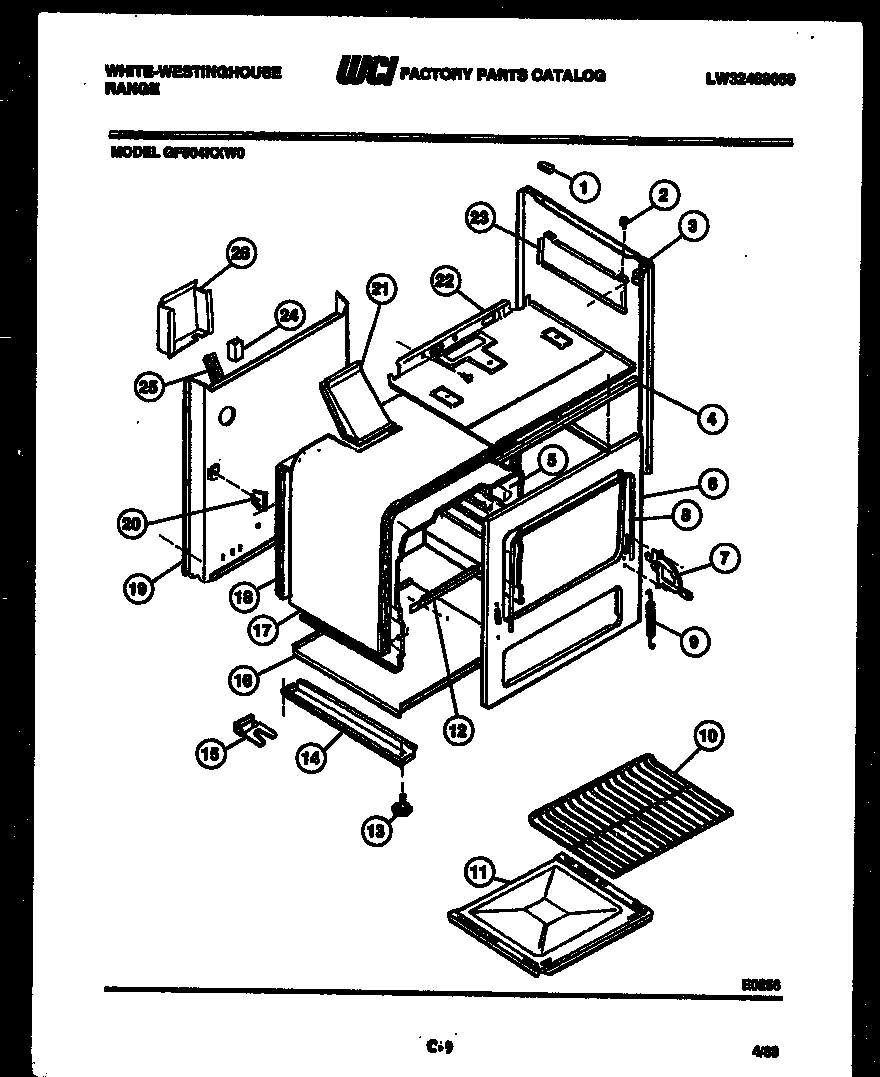

GF504KXD0 05 – BODY PARTS

Products

Position	Product
1	GROMMET MAIN TOP
2	WCI AP00172002
3	WCI Q000301946
4	SUPPORT-CONTROL PANEL
5	WCI 3017445
5	WCI 3017446
5	LINER LT SIDE
5	LINER RT SIDE
6	WCI 3016942
7	318348801 Frigidaire Oven Left Side Door Hinge
7	HINGE DOOR RT
8	SEAL OVEN DOOR
9	WCI AP00339053
10	WCI 3016128
11	WCI 3017447
12	WCI A074055000
13	WCI Q000310108
14	BASE-RAIL (2)
15	BRACKET-INSTALLATION (2)
16	MAIN BOTTOM
17	WCI 3017171
18	WCI 3017172
19	BACK-MAIN
20	WCI A074060000
21	WCI 3017173
22	WCI 3017450
23	WCI A061044000
23	WCI A061074000
23A	CLIP BACKSPLASH CORNER
24	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
25A	CORD – POWER
25	WCI Q000310003
26	WCI 3131047
