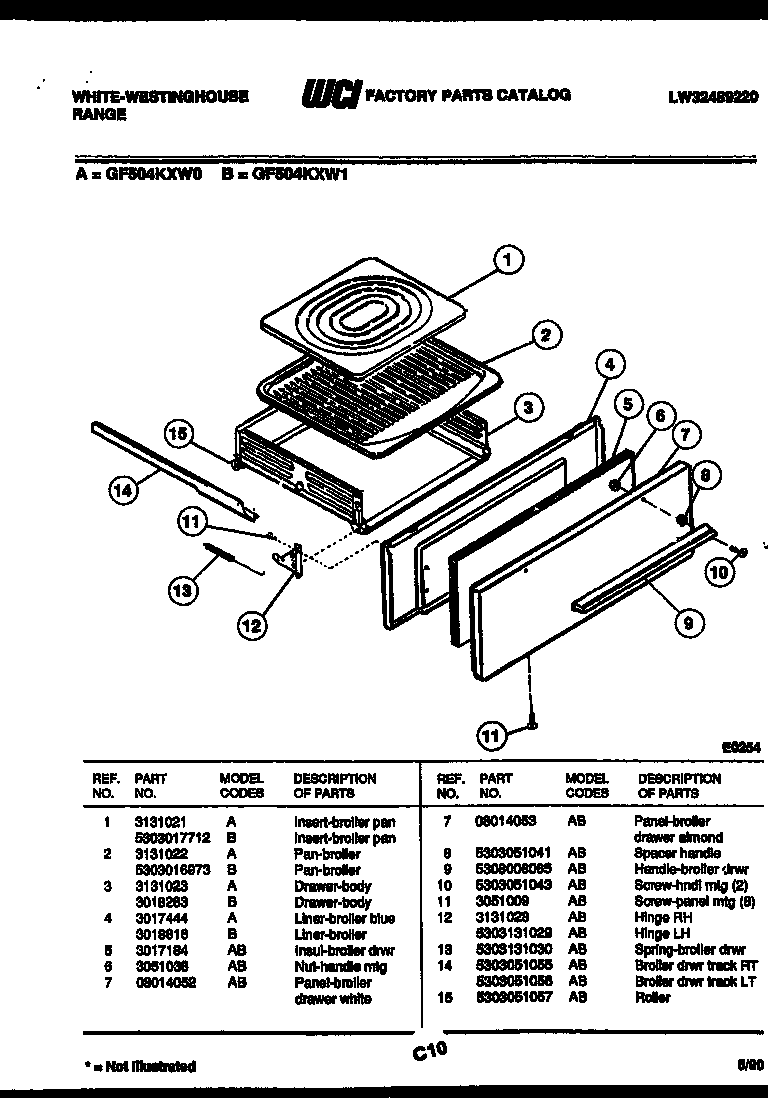

GF504KXD1 03 – BROILER DRAWER PARTS

Written by

Products

Position	Product
1	WCI 3131021
2	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
3	WCI 3131023
4	WCI 3017444
5	WCI 3017184
6	5303013272 Frigidaire Oven Nut
7	WCI 08014053
8	SPACER HANDLE
9	WCI 5308008085
10	5303292012 Frigidaire Oven Screw
11	WCI 3051009
12	HINGE – RH
12A	HINGE – LH
13	SPRING
14	TRACK ASSY-RH
14A	TRACK ASSY-LH
15	ROLLER
