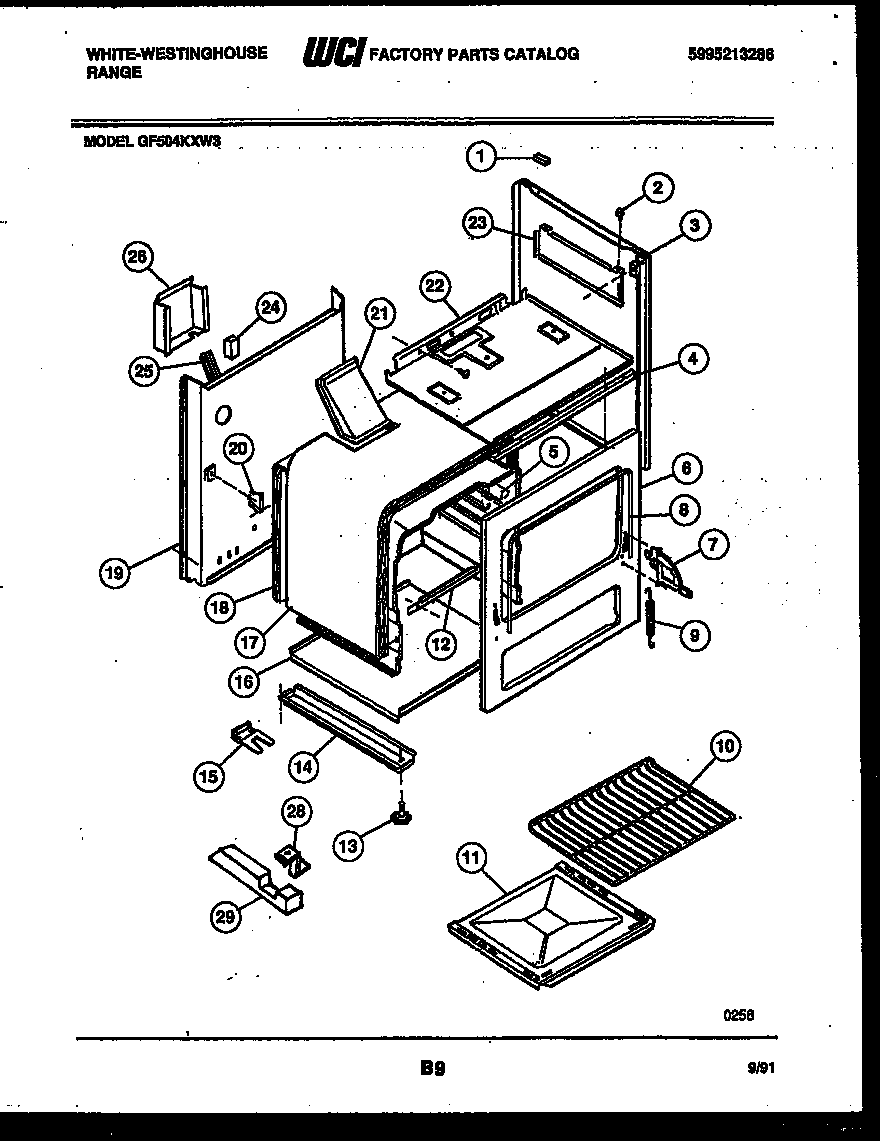

GF504KXW3 05 – BODY PARTS

Products

PositionProduct
*54059WCI 19100180271
1GROMMET-MAINTOP
2GROMMET
3BODYSIDE PANEL-WHITE (2)
4SUPPORT-CONTROL PANEL
5AOVEN LINER-SIDE LH
5OVEN LINER-SIDE RH
5BOVEN LINER TOP
5COVEN LINER BACK
6BHINGE ASSY-RH
6A318348801 Frigidaire Oven Left Side Door Hinge
6FRAME-FRONT
8WCI 5308013916
9SPRING-OVEN DOOR
10WCI 5303016128
11OVEN BOTTOM
12SUPPORT-OVEN BOTTOM
14ARAIL-BASE, LH
14Rail,base ,RH
15ANTI-TIP KIT
16MAIN BOTTOM
17WCI 3203740
18INSUL BACK & TOP
19WCI 5303271410
20SUPPORT-REAR OVN (2)
21WCI 3017173
22BURNER BOX
23ASHIELD-BURNER BOX LH
23SHIELD-BURNER BOX RH
23BCLIP,BODYSIDE
245303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
25CHANNEL – MAIN WIRE
26WCI 3131047
28WCI 5303210892
29WCI 5303210891
