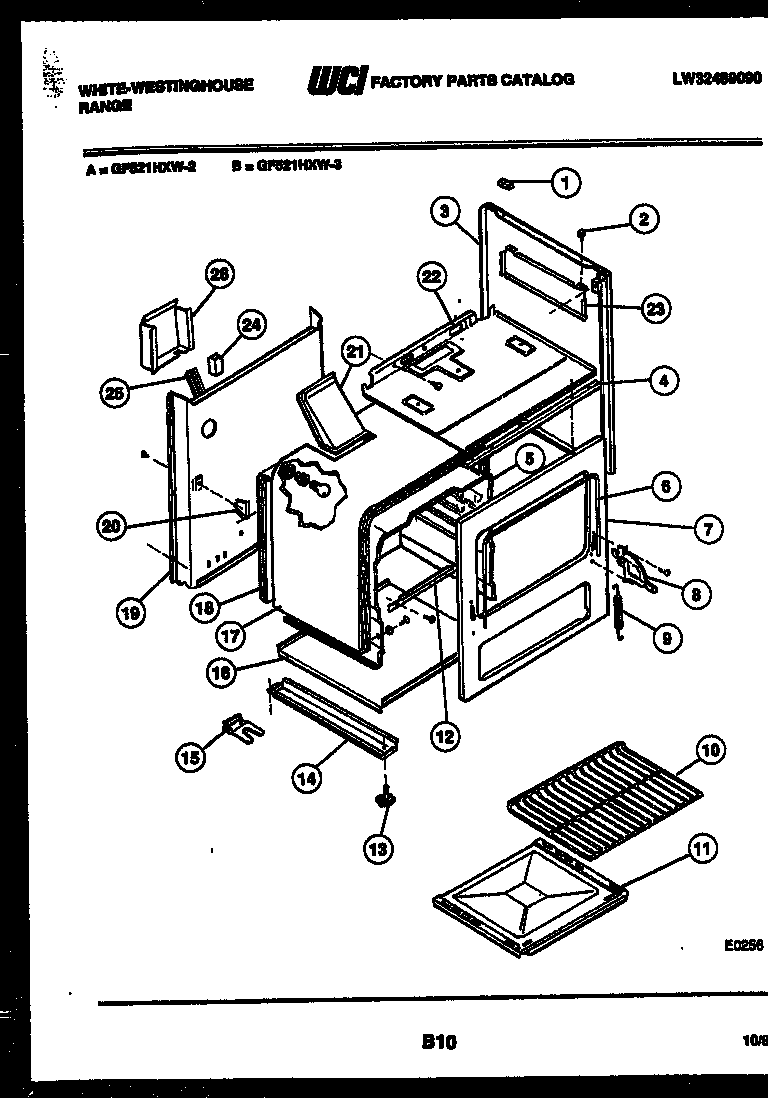

GF521HXD2 05 – BODY PARTS

Products

Position	Product
3	WCI 08014019
4	SUPPORT-CONTROL PNL
5	LINER RT SIDE
5C	WCI 3131035
5B	WCI 3131034
5A	LINER LT SIDE
6	WCI 3051068
7	318348801 Frigidaire Oven Left Side Door Hinge
7A	CAM-DOOR RIGHT HAND
8	SEAL – OVEN DOOR
9	SPRING DOOR (2)
10	WCI 3016158
11	WCI 3131037
12	SUPPORT-OVEN BOTTOM
13	WCI 3051080
14	BASE RAIL
15	ANTI-TIP KIT
16	MAIN BOTTOM
17	INSULATION WRAPPER
18	WCI 3131044
19	WCI 3131045
20	SUPPORT-REAR OVN (2)
21	WCI 3017173
22	BURNER BOX
23D	GROMMET
23C	GROMMET MAIN TOP
23B	CLIP BACKSPLASH CORNER
23	WCI 3131053
23A	WCI 3131054
24	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
25	CHANNEL – MAIN WIRE
26	WCI 3131047
