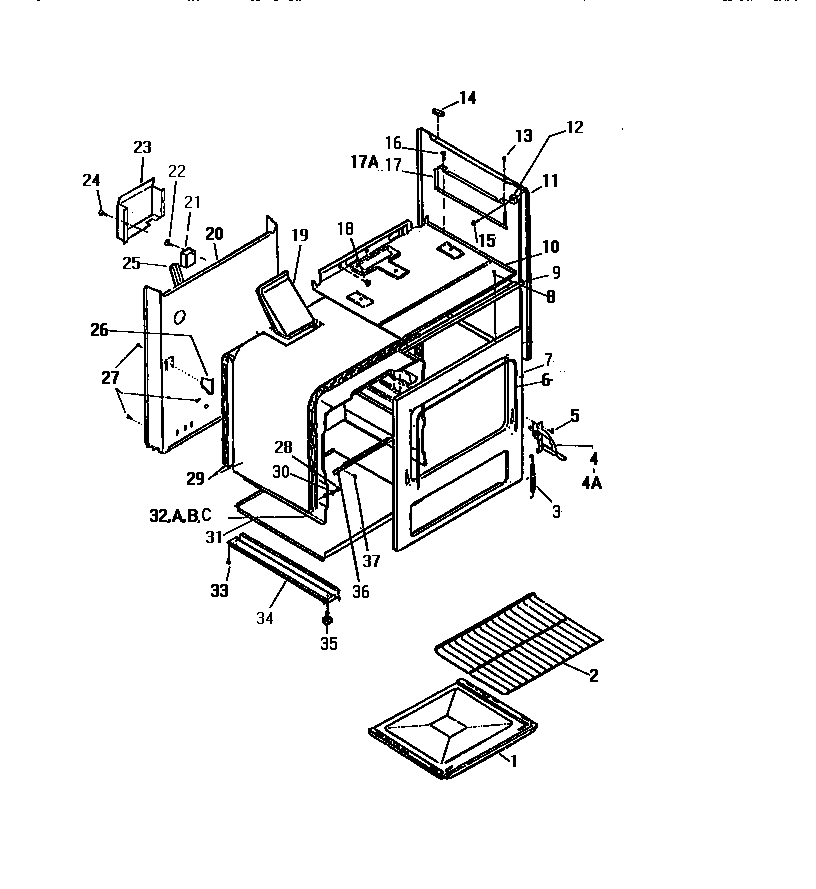

GF521HXH0 05 – OVEN AND BODY

Products

Position	Product
1	WCI Q301970
2	WCI AP301042
3	WCI AP339053
4A	318348801 Frigidaire Oven Left Side Door Hinge
4	WCI A96068000
5	5304500008 Frigidaire Oven Screw
6	WCI AP326050
7	WCI Q301834
9	SUPPORT-CONTROL PNL
10	WCI Q310067
11	BOTTOM PANEL, LH & RH (WHEAT)
12	WCI Q310084
13	WCI AP172002
14	WCI Q301831
17A	HEAT SHIELD, LH (NON-ILLUSTRATED)
17	HEAT SHIELD-RH
18	WCI AP074001
19	WCI A92049000
20	WCI A5085000
21	WCI Q301969
23	WCI Q310077
25	WCI Q310003
26	WCI A74060000
28	WCI AP051045
30	WCI AP391021
31	WCI Q134234
31	PANEL, BOTTOM
32	WCI Q301972
32B	OVEN WRAPPER PANELS, TOP
32C	OVEN WRAPPER PANELS, BACK
32A	WCI Q301971
34	BASE RAIL
35	WCI AP059009
36	WCI AP74055000
37	WCI AP051056
