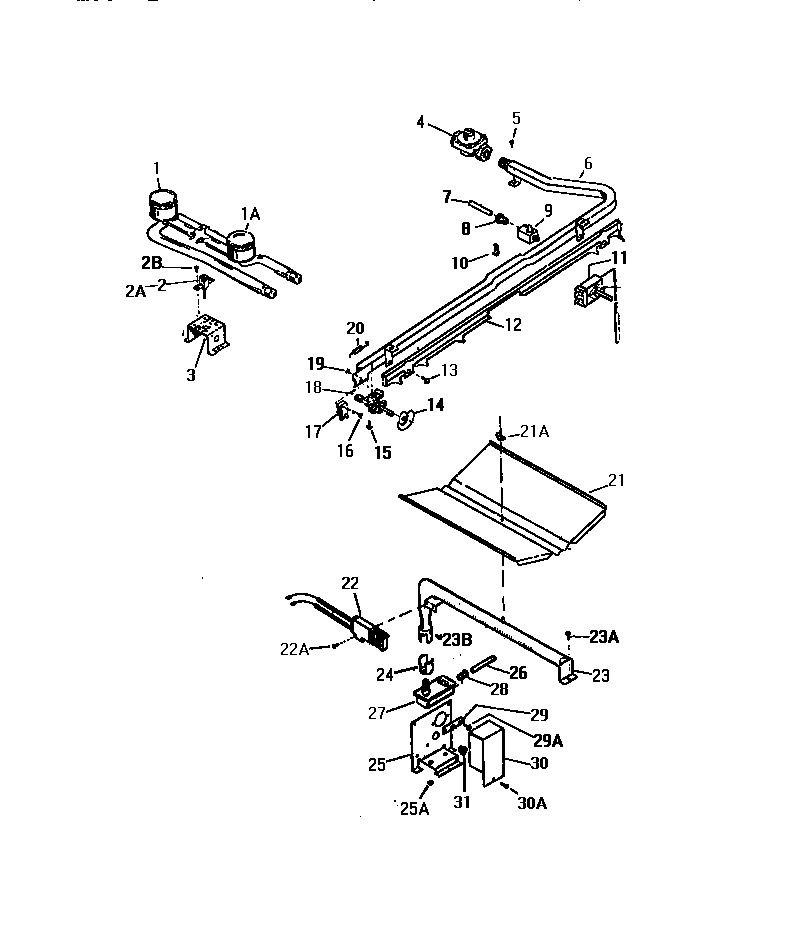

GF521HXW1 04 – BURNER ASSEMBLY

Products

Position	Product
1	WCI Q301865
1A	WCI Q301861
2	WCI Q301862
2A	WCI Q310074
3	WCI Q301866
4	5308007974 Frigidaire Pressure Regulator
6	WCI Q310075
8	BUT - 3/8 LOXIT
9	WCI AP386174
10	CLIP, CAP. TUBE
11	WCI 301858
12	WCI Q310076
13	WCI Q301839
14	WCI A22002000
15	WCI Q310002
16	SCREW
17	WCI Q301874
18	WCI Q301873
19	NUT
20	WCI Q301869
21	WCI A9010000
21A	WING NUT
22	5303935066 Frigidaire Oven Flat Igniter 17" Leads
22A	SCREW
23	BURNER
23B	WCI AP325006
24	WCI AP30001
25	SUPPORT
25A	WCI AP265008
26	WCI Q301867
27	WCI Q301871
28	NUT
29	TERMINAL BLOCK
30A	WCI AP051056
30	VALVE COVER
31	WCI AP074001
