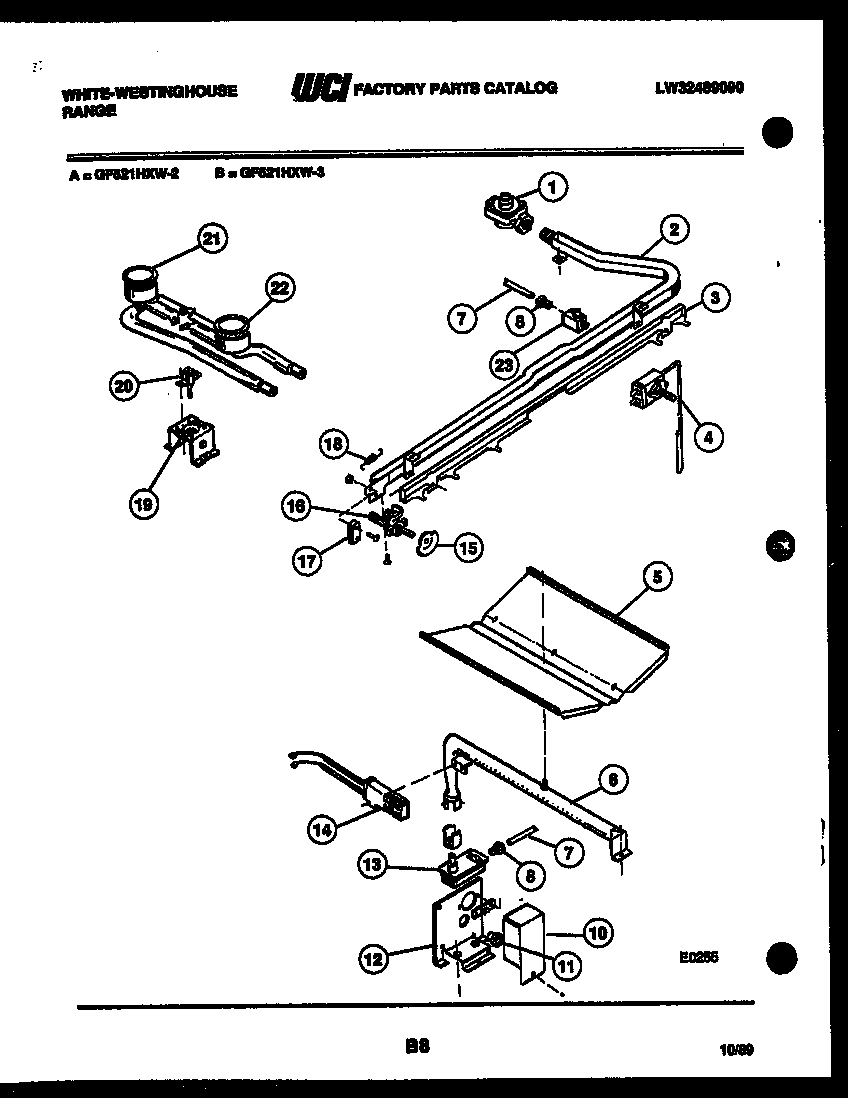

GF521HXW2 04 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
15308007974 Frigidaire Pressure Regulator
2WCI 3131081
3SLIDE BAR
4THERMOSTAT
5BAFFLE-OVEN BURNER
6WCI 3131084
7TUBE – 3/8 FEED
8LOXIT – NUT (2)
9TERMINAL BLOCK
10COVER – OVEN SAFETY VALVE
11SNAP – BUSHING
12SUPPORT-OVEN SAFETY VALVE
13VALVE-SAFETY
145303935066 Frigidaire Oven Flat Igniter 17" Leads
15WCI 08008002
16WCI 3131057
17MICRO – SWITCH
18WCI 3131096
19SUPPORT – TOP BURNER
20IGNITER 36“
21BURNER – TOP REAR
22BURNER – TOP FRONT
23WCI 3131099
