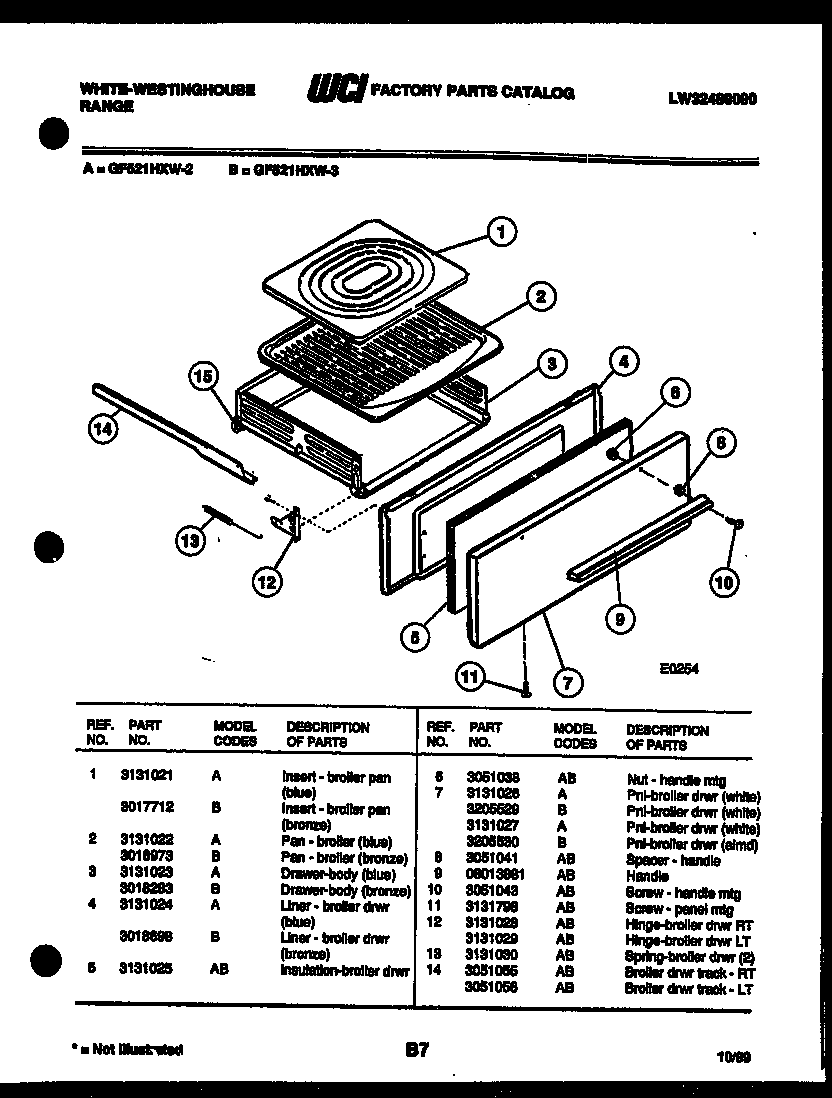

GF521HXW3 03 – BROILER DRAWER PARTS

GF521HXW3 03 – BROILER DRAWER PARTS

Written by

in

GF521HXW3 03 – BROILER DRAWER PARTS

Products

PositionProduct
1BROILER GRID
2WCI 3016973
35304504568 Frigidaire Drawer Assembly
4LINER
5WCI 3131025
65303013272 Frigidaire Oven Nut
7WCI 3205529
8SPACER HANDLE (2)
9WCI 08013881
105303292012 Frigidaire Oven Screw
11SCREW – PANEL MTG
12HINGE – RH
12AHINGE – LH
13SPRING (2)
14ATRACK LEFT HAND
14TRACK RIGHT HAND
