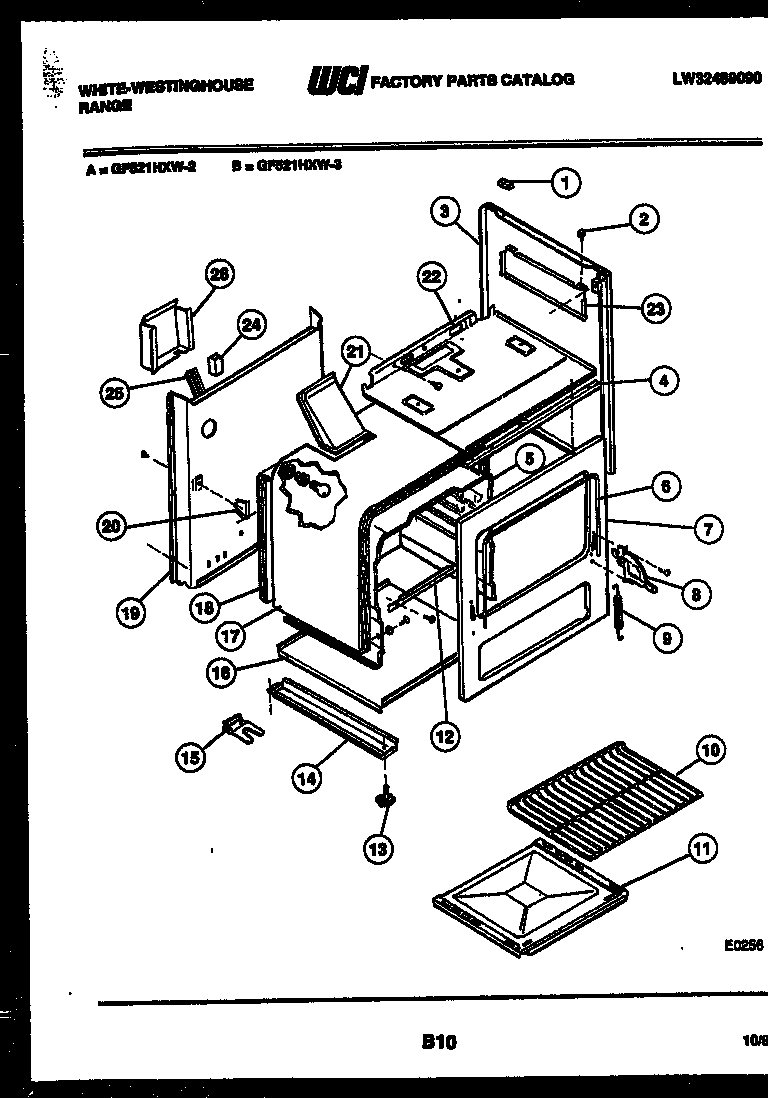

GF521HXW3 05 – BODY PARTS

Products

Position	Product
3	PANEL-BODYSIDE (WHITE) (2)
4	SUPPORT-CONTROL PNL
5A	OVEN LINER-SIDE LH
5	OVEN LINER-SIDE RH
5C	OVEN LINER-BACK
5B	OVEN LINER-TOP
6	FRAME-FRONT
7	318348801 Frigidaire Oven Left Side Door Hinge
7A	WCI 3204670
8	SEAL – OVEN DOOR
9	SPRING DOOR (2)
10	WCI 3016158
11	OVEN-BOTTOM
12	SUPPORT-OVEN BOTTOM
13	WCI 3051080
14	BASE RAIL
15	ANTI-TIP KIT
16	MAIN BOTTOM
17	INSULATION WRAPPER
18	WCI 3131044
19	WCI 3131045
20	SUPPORT-REAR OVN (2)
21	WCI 3017173
22	BURNER BOX
23	WCI 3131053
23B	CLIP BACKSPLASH CORNER
23C	GROMMET MAIN TOP
23D	GROMMET
23A	WCI 3131054
24	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
25	CHANNEL – MAIN WIRE
26	WCI 3131047
