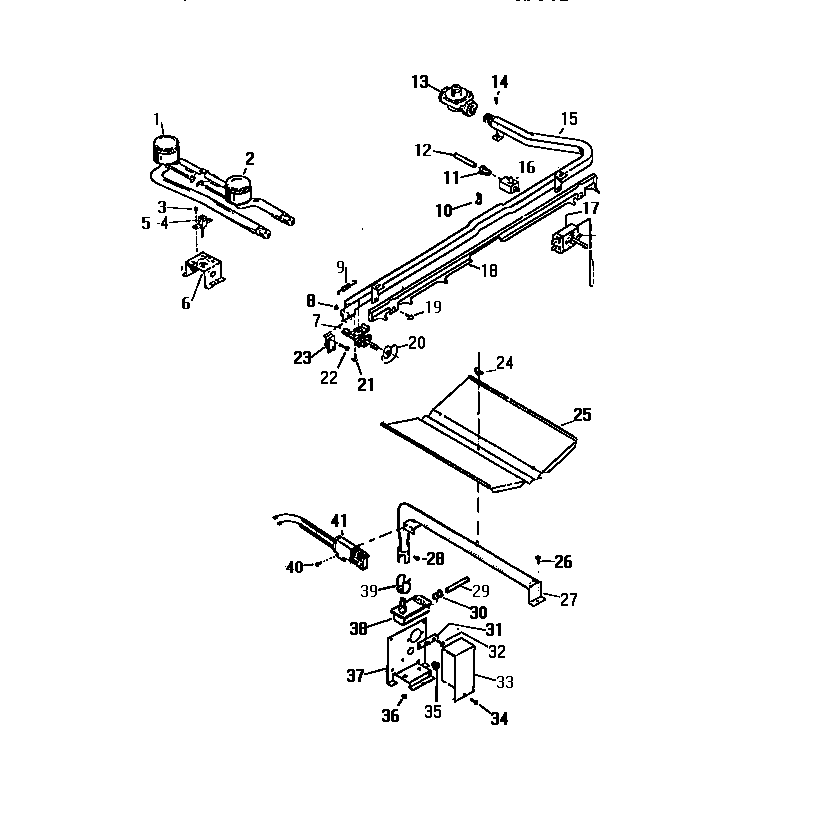

GF600HXF1 04 – BURNER ASSEMBLY

Products

Position	Product
1	WCI Q301865
2	WCI Q301861
4	WCI Q301862
5	WCI Q301864
6	WCI Q301866
7	WCI Q301873
8	NUT
9	WCI Q301869
10	CLIP, CAP. TUBE
11	BUT - 3/8 LOXIT
13	5308007974 Frigidaire Pressure Regulator
15	WCI Q301855
16	VALVE
17	WCI Q301858
18	WCI Q301857
19	WCI Q301839
20	WCI A22002000
21	WCI Q310002
22	SCREW
23	WCI Q301874
24	WING NUT
25	WCI A9010000
27	BURNER
28	SCREW
29	WCI Q301867
30	NUT
31	TERMINAL BLOCK
33	VALVE COVER
34	WCI AP051056
35	WCI AP074001
36	WCI AP265008
37	SUPPORT
38	WCI Q301871
39	SHUTTER
40	SCREW
41	5303935066 Frigidaire Oven Flat Igniter 17" Leads
