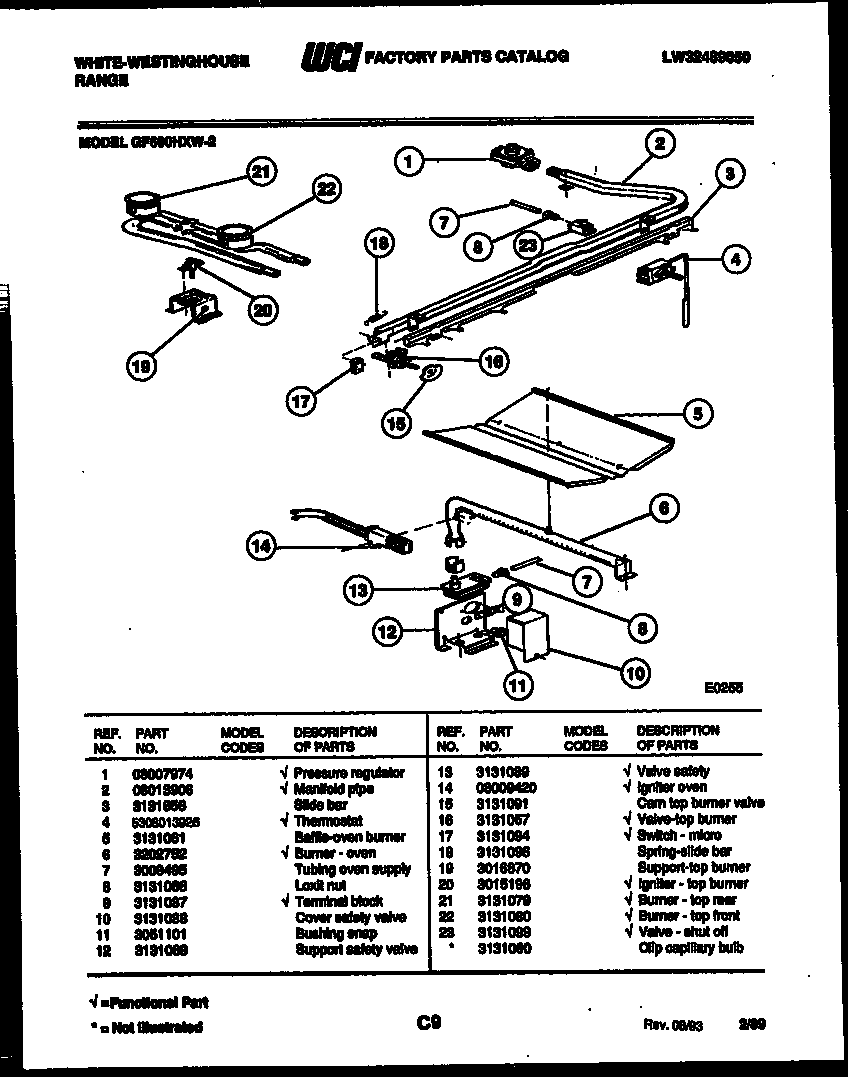

GF600HXW2 03 – BURNER, MANIFOLD AND GAS CONTROL

GF600HXW2 03 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

GF600HXW2 03 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*18393CLIP CAPILLARY (2)
15308007974 Frigidaire Pressure Regulator
2WCI 08013906
3SLIDE BAR
4WCI 5308013926
5BAFFLE-OVEN BURNER
6WCI 3202752
7TUBE – 3/8 FEED
8LOXIT NUT
9TERMINAL BLOCK
10COVER – OVEN SAFETY VALVE
11SNAP – BUSHING
12SUPPORT-OVEN SAFETY VALVE
13VALVE-SAFETY
145303935066 Frigidaire Oven Flat Igniter 17" Leads
15CAM TOP BURNER VALVE
16WCI 3131057
17MICRO – SWITCH
18WCI 3131096
19SUPPORT – TOP BURNER
20IGNITER 36“
21BURNER – TOP REAR
22BURNER – TOP FRONT
23WCI 3131099
