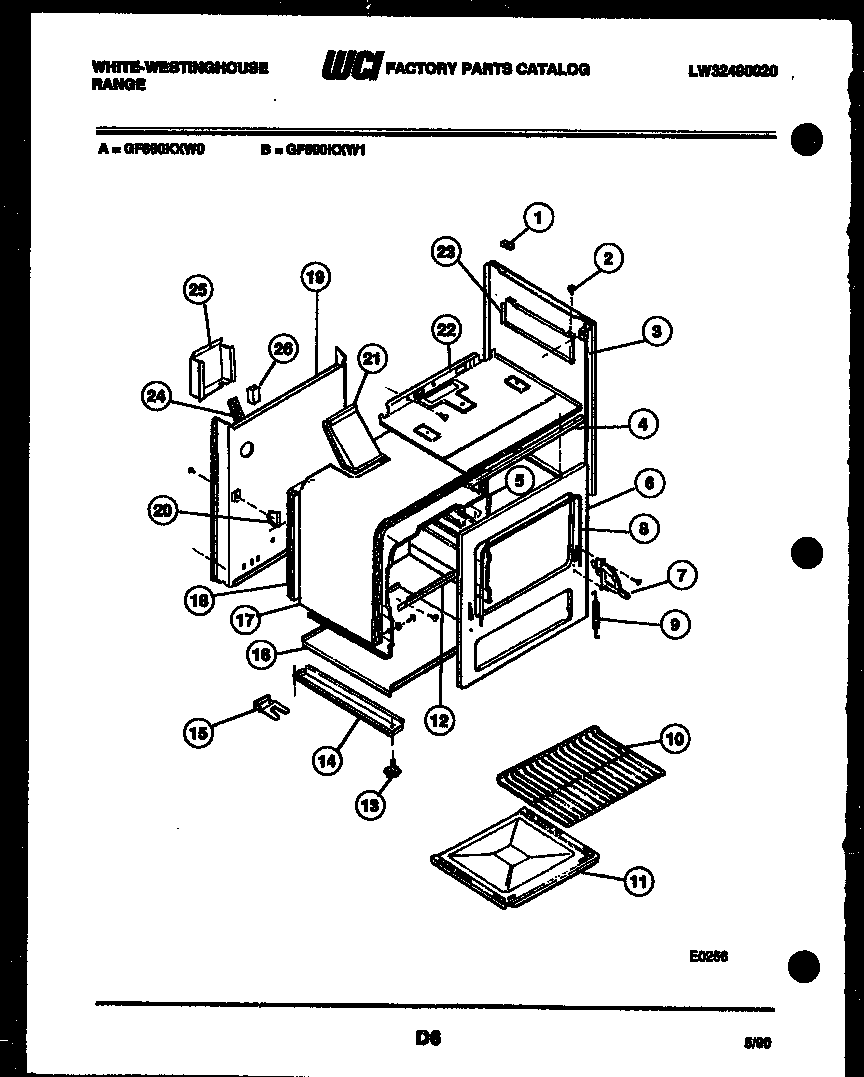

GF600KXD1 06 – BODY PARTS

Products

Position	Product
1	GROMMET-MAINTOP
2	GROMMET
3	PANEL BODYSIDE-ALMD
4	SUPPORT CONTROL PNL
5B	WCI 3018347
5	OVEN LINER-SIDE RH
5A	OVEN LINER-SIDE LH
5C	WCI 3018995
6	WCI 3205578
7	318348801 Frigidaire Oven Left Side Door Hinge
7A	HINGE ASSY-RH
8	DOOR SEAL
9	SPRING-OVEN DR (2)
10	OVEN RACK (2)
11	WCI 3018282
12	SUPPORT-OVEN BOTTOM
13	LEG LEVELLER (4)
14	RAIL-BASE
15	ANTI-TIP KIT
16	WCI 3011645
17	WCI 3017171
18	WCI 3017172
19	WCI 5303013340
20	SUPPORT-REAR OVN (2)
21	WCI 3017173
22	WCI 3017174
23B	CLIP,BODYSIDE
23	SHIELD-BURNER BOX RH
23A	SHIELD-BURNER BOX LH
24	CHANNEL – MAIN WIRE
25	WCI 08013953
26	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
