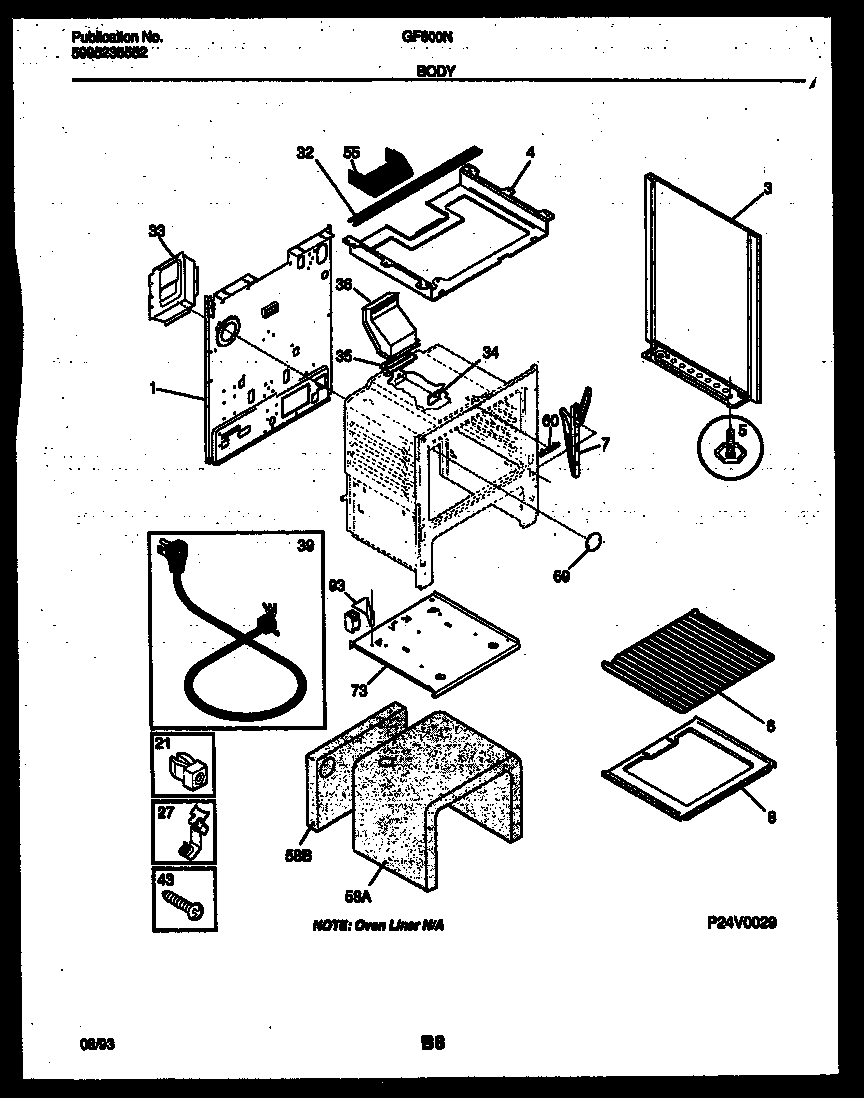

GF600ND8 04 – BODY PARTS

Products

Position	Product
*81127	WCI 3131192
1	WCI 3203082
3A	WCI 5303269545
3	WCI 5303269543
4	BURNER BOX BOTTOM
5B	ANTI-TIP KIT (NOT ILLUSTRATED)
5A	NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5	SCREW-LEVELING
6	316067902 Frigidaire Oven Rack
7	Hinge,oven door ,(2)
8	BTTM-OVEN
8A	316064600 Frigidaire Oven Support
21	SPACER-BODYSIDE, (8)
27	5303284616 Frigidaire Range Bulb Clip Thermostat
32	CHANNEL-BURNER BOX
33	WCI 316055601
34	COVER-IGNITOR
35	316542102 Frigidaire Flue Gasket
36	316204402 Frigidaire Oven Flue
39	5304515659 Frigidaire Oven Power Cord
43	316282700 Frigidaire Oven Screw
55A	SHIELD-FLUE, (NON-ILLUSTRATED)
55	COVER-VENT
58A	INSULATION, OVEN WRAPPER
58B	INSUL – OVEN BACK (NON-ILLUSTRATED)
60	COVER-OVEN FRONT
69	3051218 Frigidaire Oven Plate
73	BASE-BROIL
93	WCI 316055501
