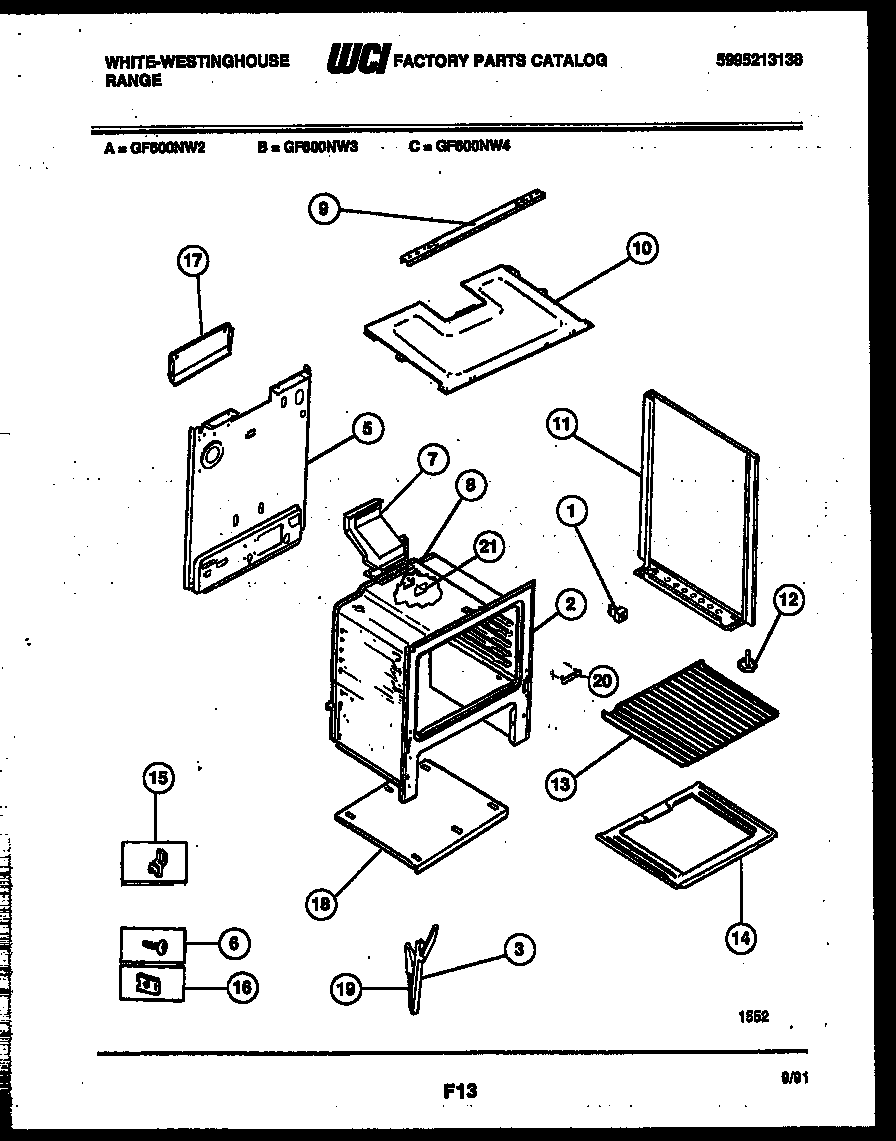

GF600NW3 07 – BODY PARTS

GF600NW3 07 – BODY PARTS

Written by

in

GF600NW3 07 – BODY PARTS

Products

PositionProduct
*52229WCI 3131192
*522293051218 Frigidaire Oven Plate
*522295304515659 Frigidaire Oven Power Cord
*52229WCI 3131660
*52229WCI 08067961
*52229DIAGRAM, WIRING (NOT FOR PURCHASE)
*52229COVER-POWER CORD, (NON-ILLUSTRATED)
1SPACER-BODYSIDE, (8)
3WCI 316007002
5WCI 3203082
6316282700 Frigidaire Oven Screw
7316204402 Frigidaire Oven Flue
8316542102 Frigidaire Flue Gasket
9CHANNEL-BURNER BOX
10BURNER BOX BOTTOM
11PNL-B/S-RH-WHITE
11PNL-B/S-LH-WHITE
12SCREW-LEVELING
13316067902 Frigidaire Oven Rack
13AWCI 08010570
14BWCI 3107142
14AINSUL – OVEN BACK (NON-ILLUSTRATED)
14BTTM-OVEN
155303284616 Frigidaire Range Bulb Clip Thermostat
163203010 Frigidaire Clip
17A316064600 Frigidaire Oven Support
17COVER-VENT
18WCI 5303270160
19WCI 3131575
20COVER-OVEN FRONT
20BSHIELD-FLUE, (NON-ILLUSTRATED)
20AANTI-TIP KIT (NOT ILLUSTRATED)
21COVER-IGNITOR
